Transfer Case Vibration Dampener Replacement

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

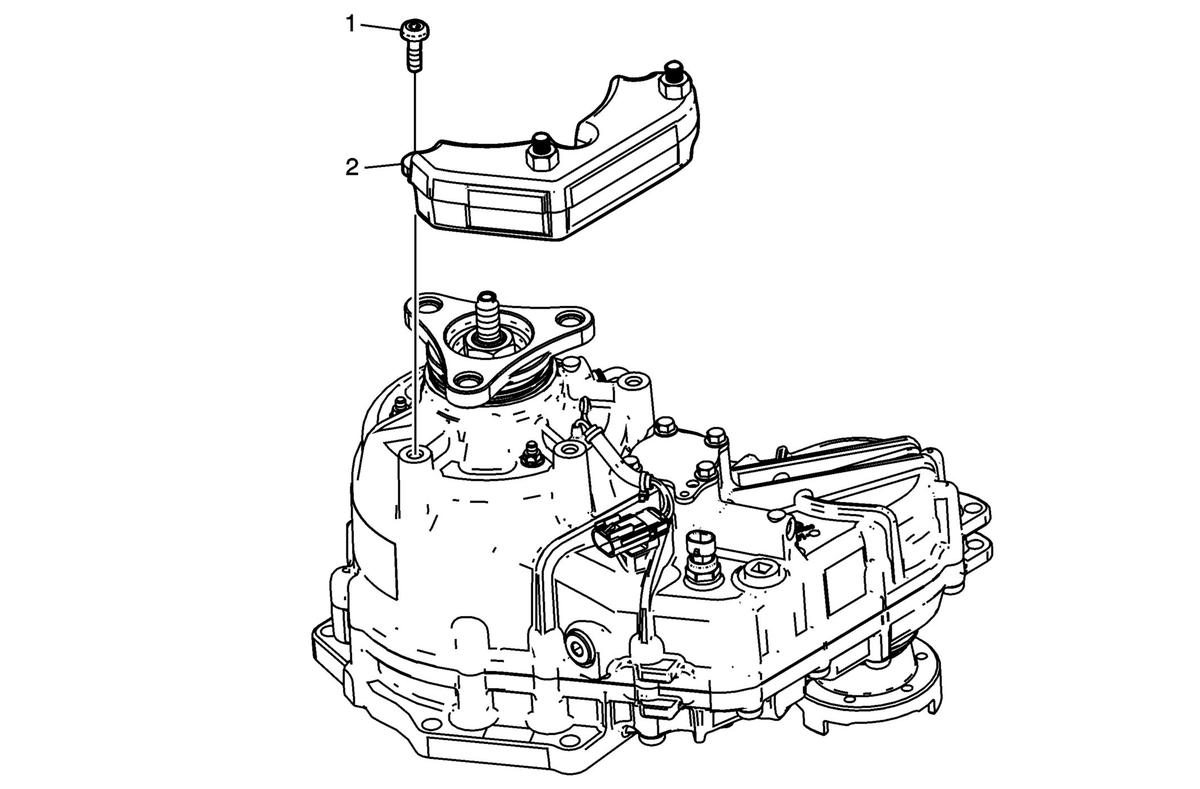

Fig 1: Vibration Dampener

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle (ATS)Lifting and Jacking the Vehicle (ATS-V) .
1	Transfer Case Vibration Dampener Bolts (Qty 2) CAUTION: Refer to Fastener Caution . Tighten 36 N.m (27 lb ft)
2	Transfer Case Vibration Dampener

Callout

Component Name

Preliminary Procedure

Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle (ATS)Lifting and Jacking the Vehicle (ATS-V) .

Transfer Case Vibration Dampener Bolts (Qty 2)

CAUTION:

Refer to Fastener Caution .

Tighten
36 N.m (27 lb ft)

Transfer Case Vibration Dampener
