Transfer Case Fluid Temperature Sensor Replacement

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

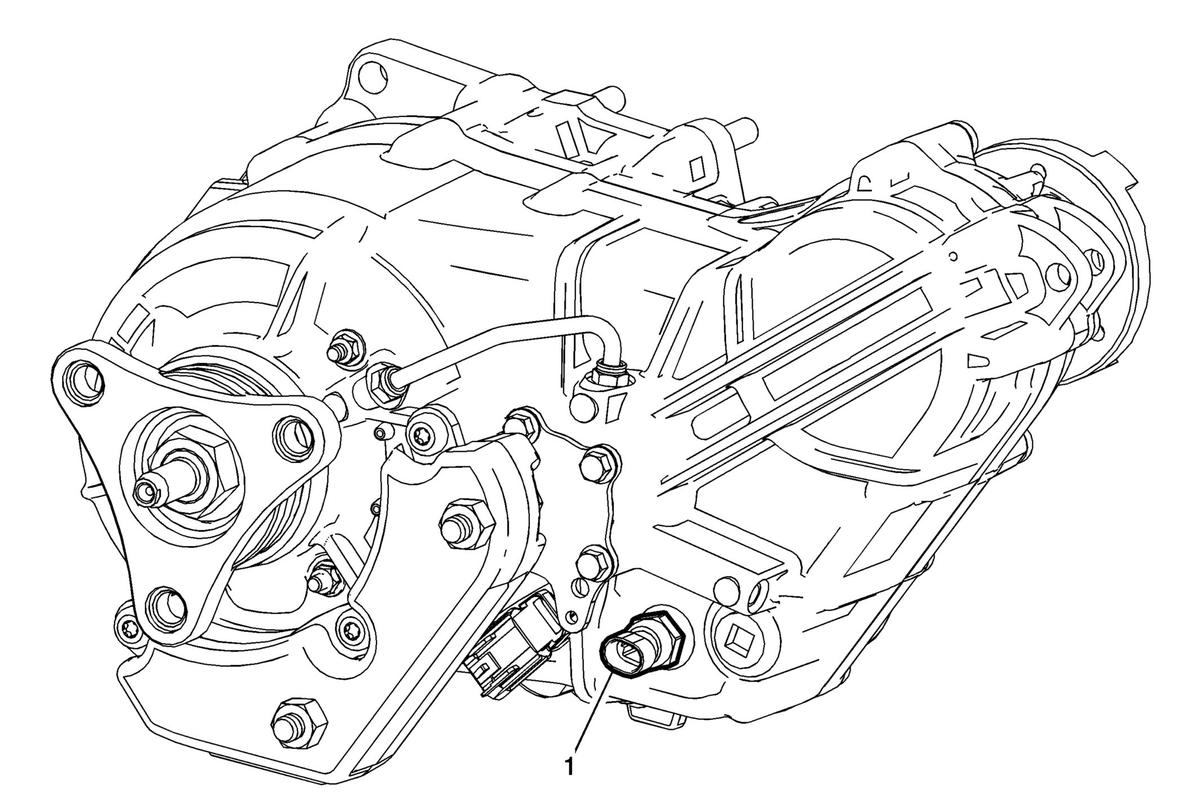

Fig 1: Transfer Case Fluid Temperature Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle (ATS)Lifting and Jacking the Vehicle (ATS-V) .
1	Transfer Case Fluid Temperature Sensor CAUTION: Refer to Component Fastener Tightening Caution . Procedure Disconnect the electrical connector from the transfer case fluid temperature sensor. Place a drain pan under the transfer case fluid temperature sensor. After sensor replacement, refill the transfer case with fluid. Refer to Transfer Case Fluid Replacement . Tighten 22 N.m (16 lb ft)

Callout

Component Name

Preliminary Procedure
Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle (ATS)Lifting and Jacking the Vehicle (ATS-V) .

Transfer Case Fluid Temperature Sensor

CAUTION:

Refer to Component Fastener Tightening Caution .

Procedure

Disconnect the electrical connector from the transfer case fluid temperature sensor.
Place a drain pan under the transfer case fluid temperature sensor.
After sensor replacement, refill the transfer case with fluid. Refer to Transfer Case Fluid Replacement .

Tighten
22 N.m (16 lb ft)
