Installation Procedure

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

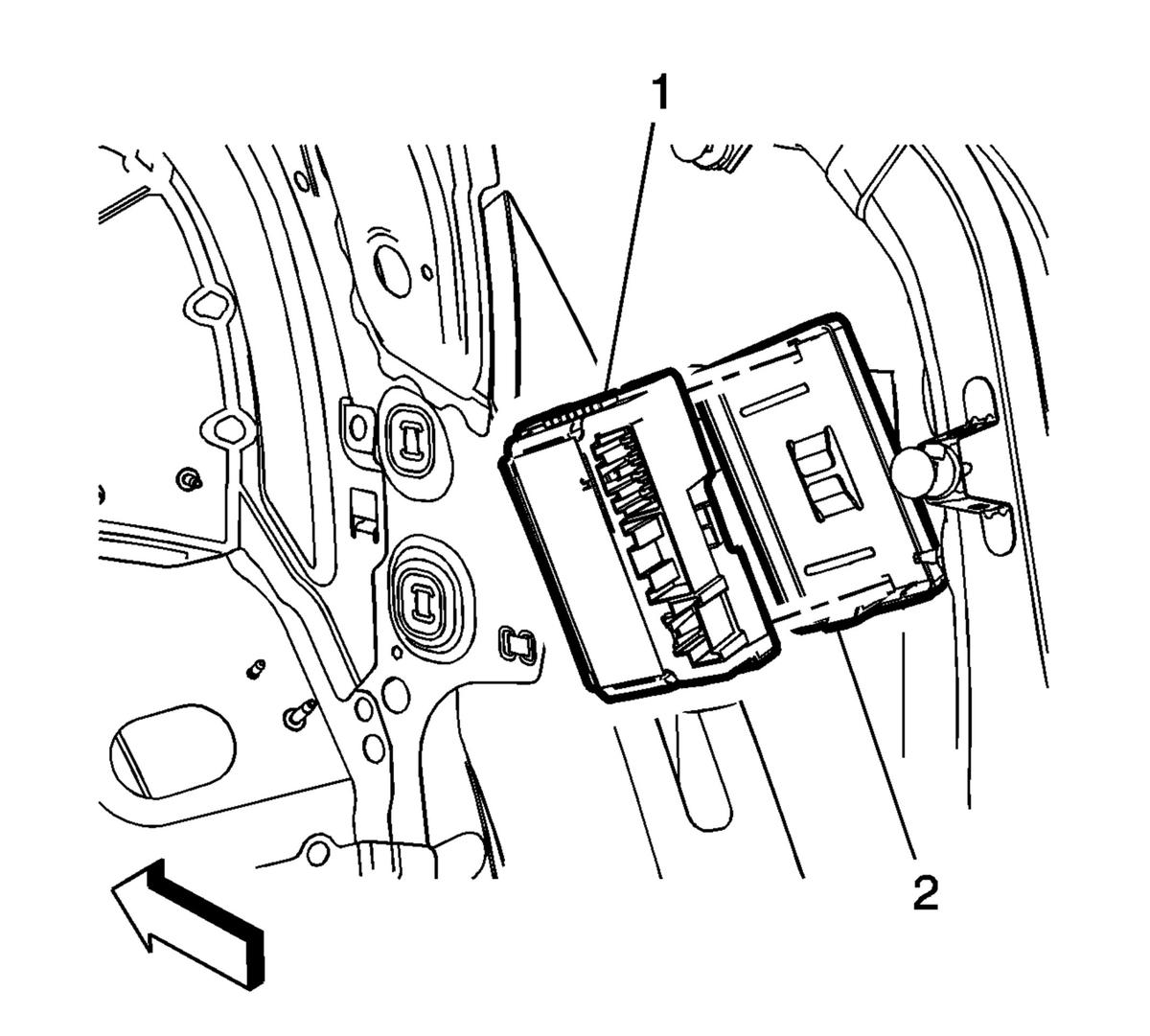

    Fig 1: Transfer Case Shift Control Module
    GM2807158Courtesy of GENERAL MOTORS COMPANY
  1. Install the transfer case shift control module (1) to the bracket.
  2. Install the electrical connectors to the transfer case shift control module.
  3. Install the right rear compartment side trim panel. Refer to Rear Compartment Side Trim Replacement - Right Side (Sedan with AM9)Rear Compartment Side Trim Replacement - Right Side (Sedan except AM9)Rear Compartment Side Trim Replacement - Right Side (Coupe) .
  4. Refer to control module references for programming and setup. Refer to Control Module References .
