Oil Distribution Tube Replacement
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

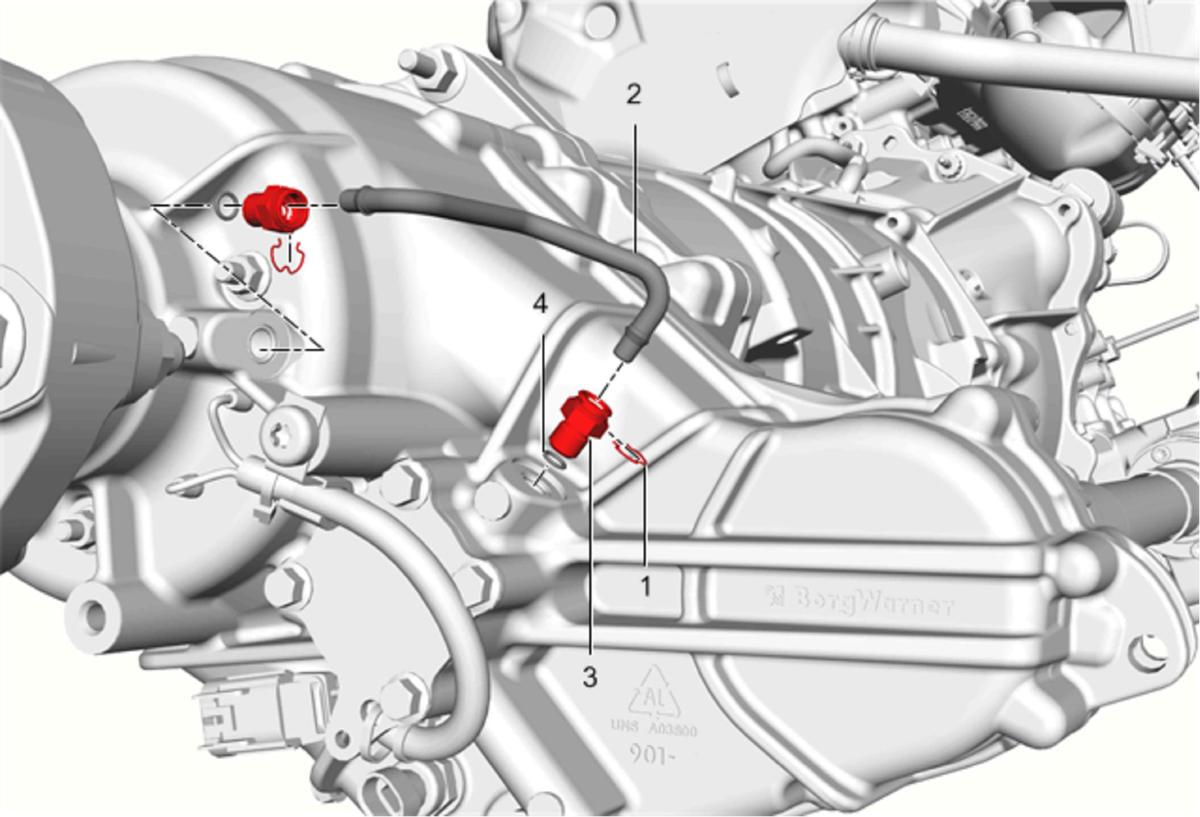

| Callout | Component Name |
|---|---|
| Preliminary Procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle (ATS)Lifting and Jacking the Vehicle (ATS-V) . |
|
| 1 | Oil Distribution Tube Retainer Clip (Qty: 2) |
| 2 | Oil Distribution Tube |
| 3 | Oil Distribution Tube Fitting (Qty: 2)
CAUTION:
Refer to Component Fastener Tightening Caution . Tighten 6 N.m (53 lb in) |
| 4 | Oil Distribution Tube O-Ring (Qty: 2) |
