Installation Procedure

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Fill the transfer case as necessary. Refer to Transfer Case Fluid Replacement .
  2. Apply sealant to the threads of the fill plug. Refer to Adhesives, Fluids, Lubricants, and Sealers .

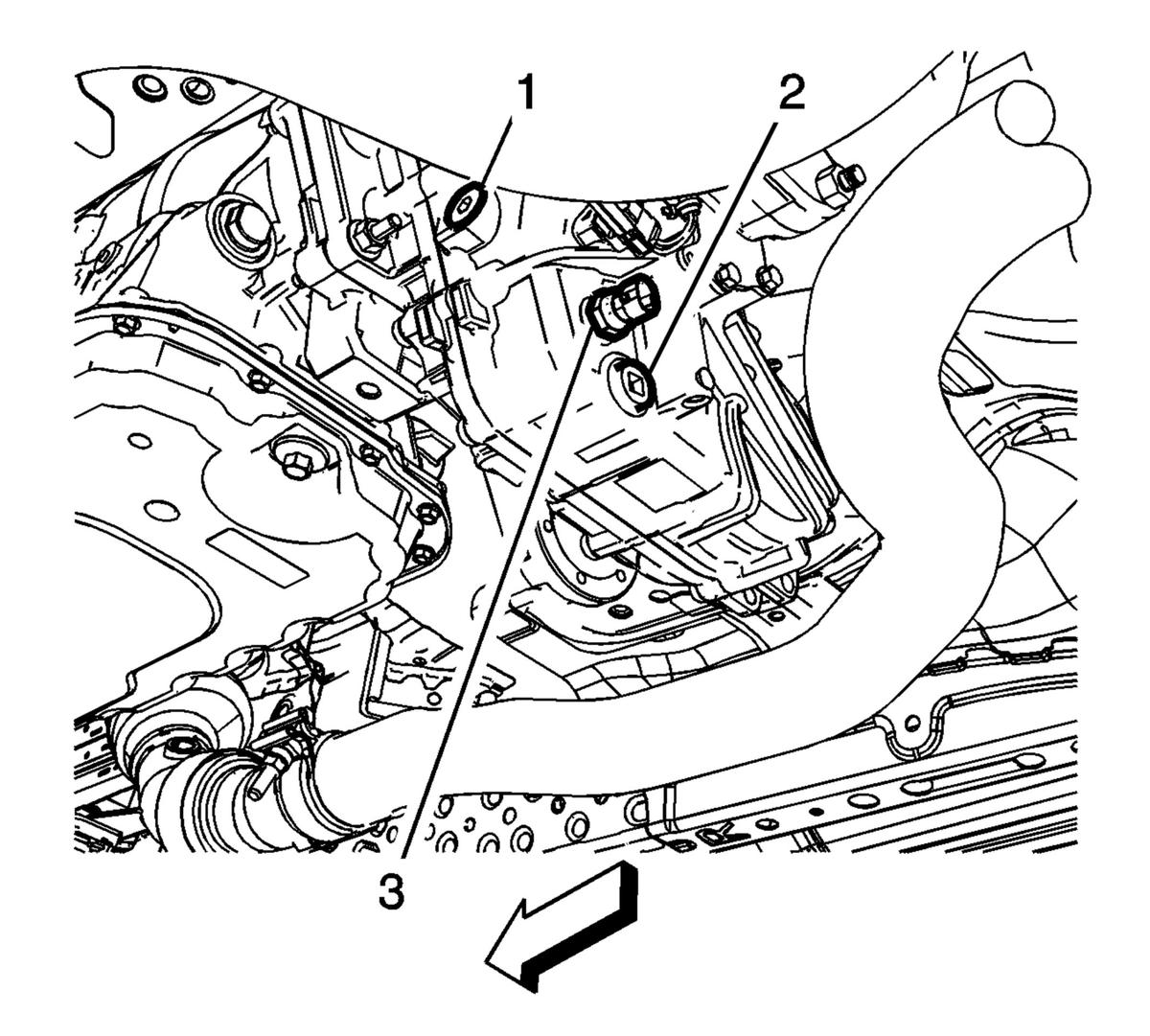

    3. Fig 1: Transfer Case Drain And Fill Plugs
    GM2791986Courtesy of GENERAL MOTORS COMPANY
  3. Install the fill plug (1) and tighten to 15 N.m (11 lb ft).
  4. Lower the vehicle.
