Vent and Adapter Studs Removal

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

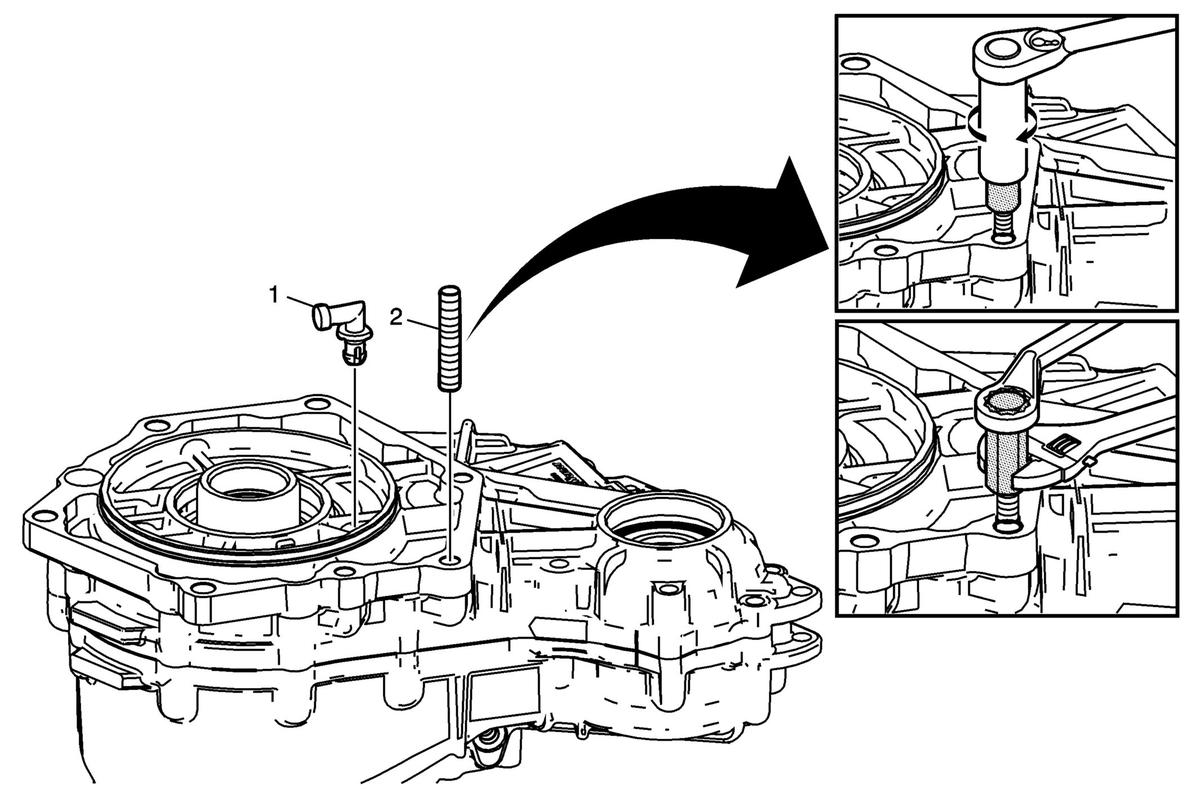

Fig 1: Vent and Adapter Studs

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Vent NOTE: Remove the vent as required. If vent removal is required, install a NEW vent during assembly.
2	Transfer Case Stud NOTE: Remove the transfer case-to-transmission studs as required. Special Tools DT-49308 Stud Remover and Installer For equivalent regional tools, refer to Special Tools .
