Two/Four Wheel Drive Clutch Coil Removal
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
Two/Four Wheel Drive Clutch Coil Removal

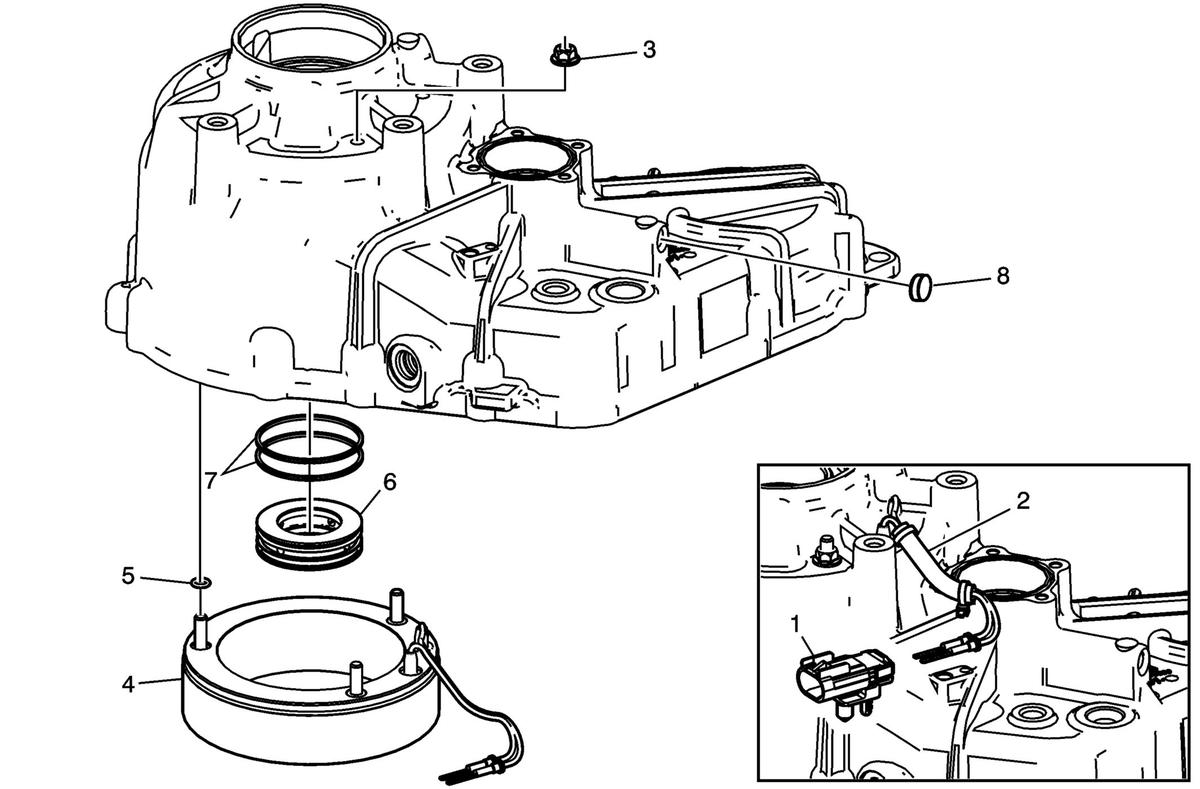

| Callout | Component Name |
|---|---|
| 1 | Two/Four Wheel Drive Inline Wiring Connector
NOTE:
Remove the connector wire retaining clip and separate the wires from the connector. |
| 2 | Conduit
NOTE:
Slide the conduit over the clutch coil wires to remove it. |
| 3 | Coil Nut |
| 4 | Two/Four Wheel Drive Clutch Coil
NOTE:
Carefully slide the wires through the holes in the case to avoid damage to the wire coating. |
| 5 | Clutch Coil Stud O-ring Seals
NOTE:
The clutch coil stud O-ring seals are not serviceable separately. If seal damage is present, replace the clutch coil assembly. |
| 6 | Oil Distribution Hub |
| 7 | Oil Distribution Hub Seals
NOTE:
The oil distribution hub seals are not available as a separate service part. If seal damage is present, the hub and seals must be replaced as an assembly. |
| 8 | Pump Plug
NOTE:
Remove pump plug only if a leak is present and replacement is required. |
