Transfer Case Holding Fixture Installation

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

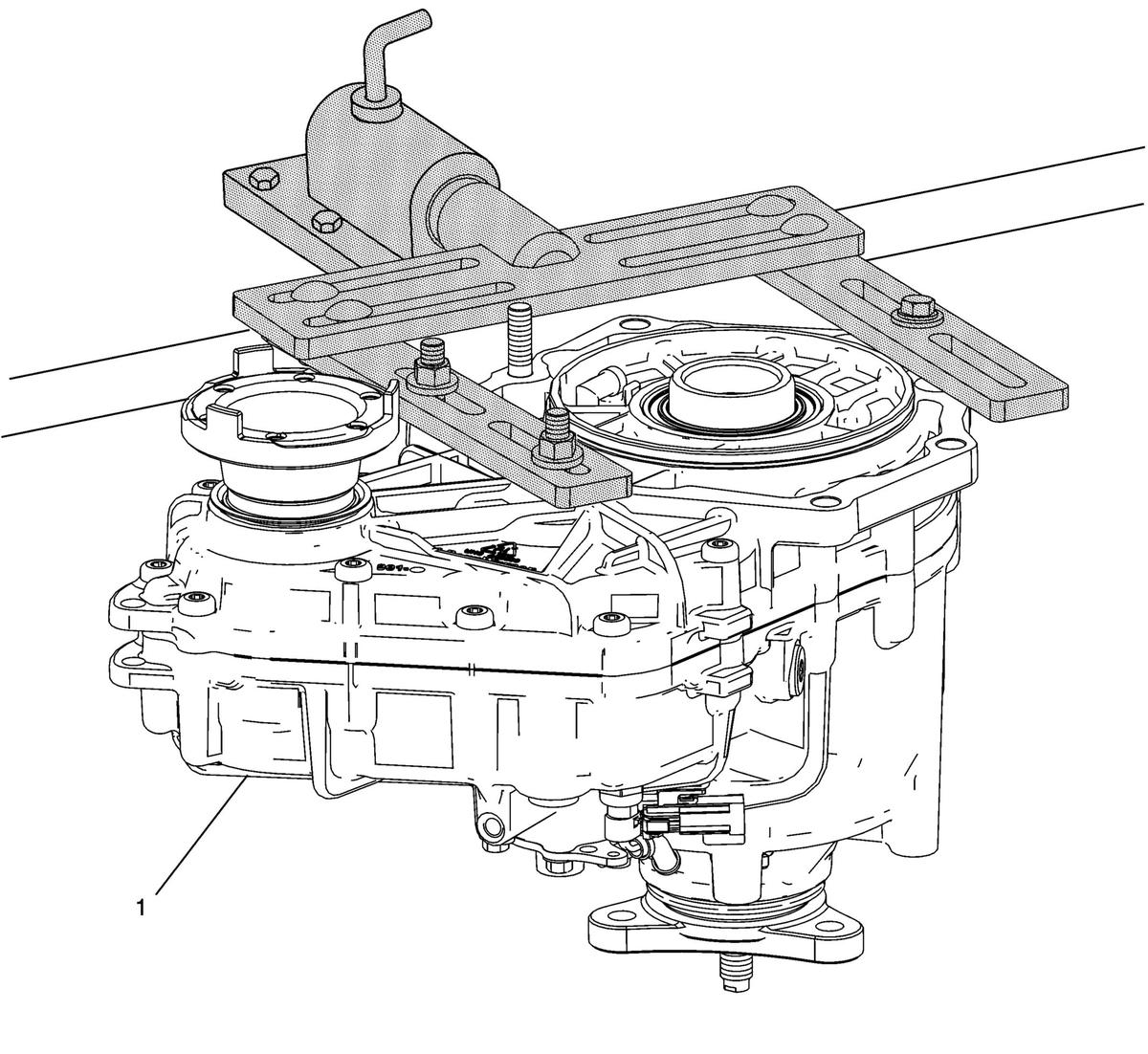

Fig 1: Transfer Case Holding Fixture

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Transfer Case Procedure Always secure with the pivot pin after rotating. The transfer case can be rotated 360 degrees to facilitate repair. Use M10 x 1.5 mm nuts and bolts to retain the assembly to the fixture. Special Tools DT-3289-20 Holding Fixture J-36842 Transaxle Holding Fixture For equivalent regional tools, refer to Special Tools .

Callout

Component Name

Transfer Case

Procedure

Always secure with the pivot pin after rotating.
The transfer case can be rotated 360 degrees to facilitate repair.
Use M10 x 1.5 mm nuts and bolts to retain the assembly to the fixture.

Special Tools

DT-3289-20 Holding Fixture
J-36842 Transaxle Holding Fixture

For equivalent regional tools, refer to Special Tools .
