Rear Output Shaft Rear Bearing Removal

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

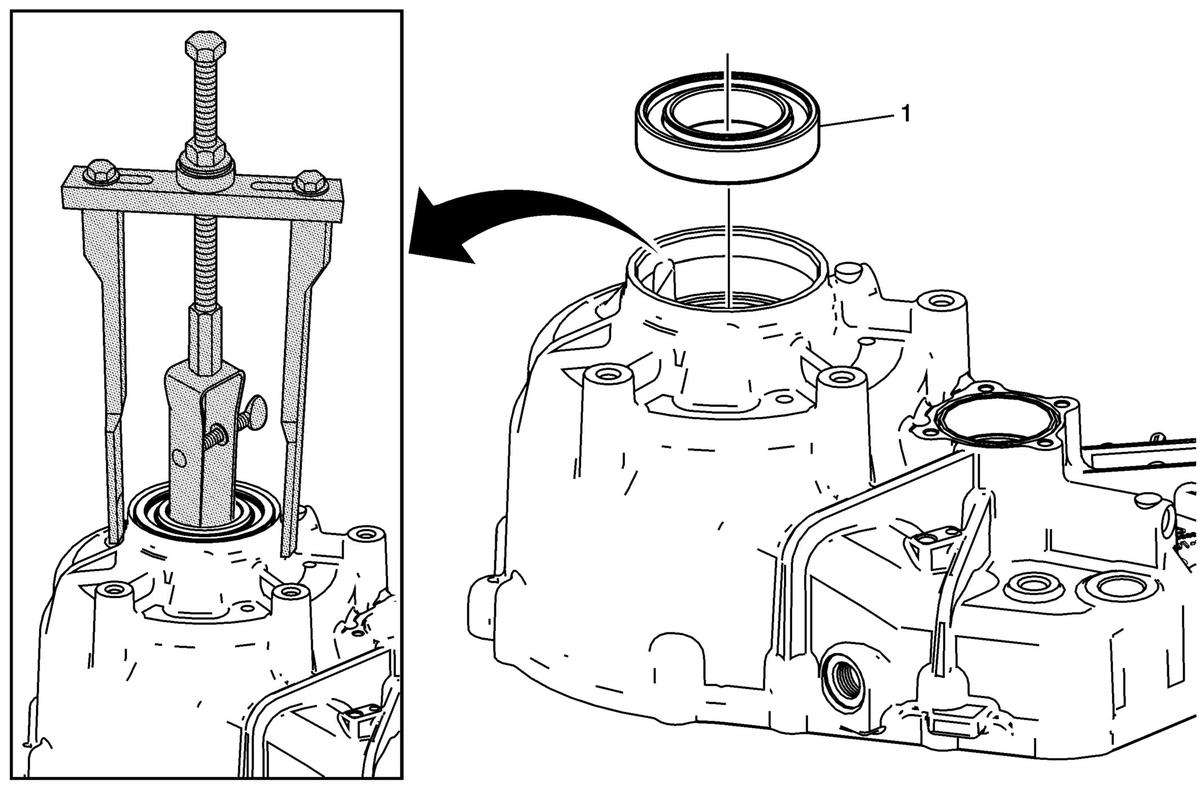

Fig 1: Rear Output Shaft Rear Bearing

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Rear Output Shaft Rear Bearing Special Tools J-45124 Removal Bridge J-45124-9 Puller Leg J-29369-2 Bushing and Bearing Remover - 2-3 in For equivalent regional tools, refer to Special Tools .
