Rear Case Half Removal
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

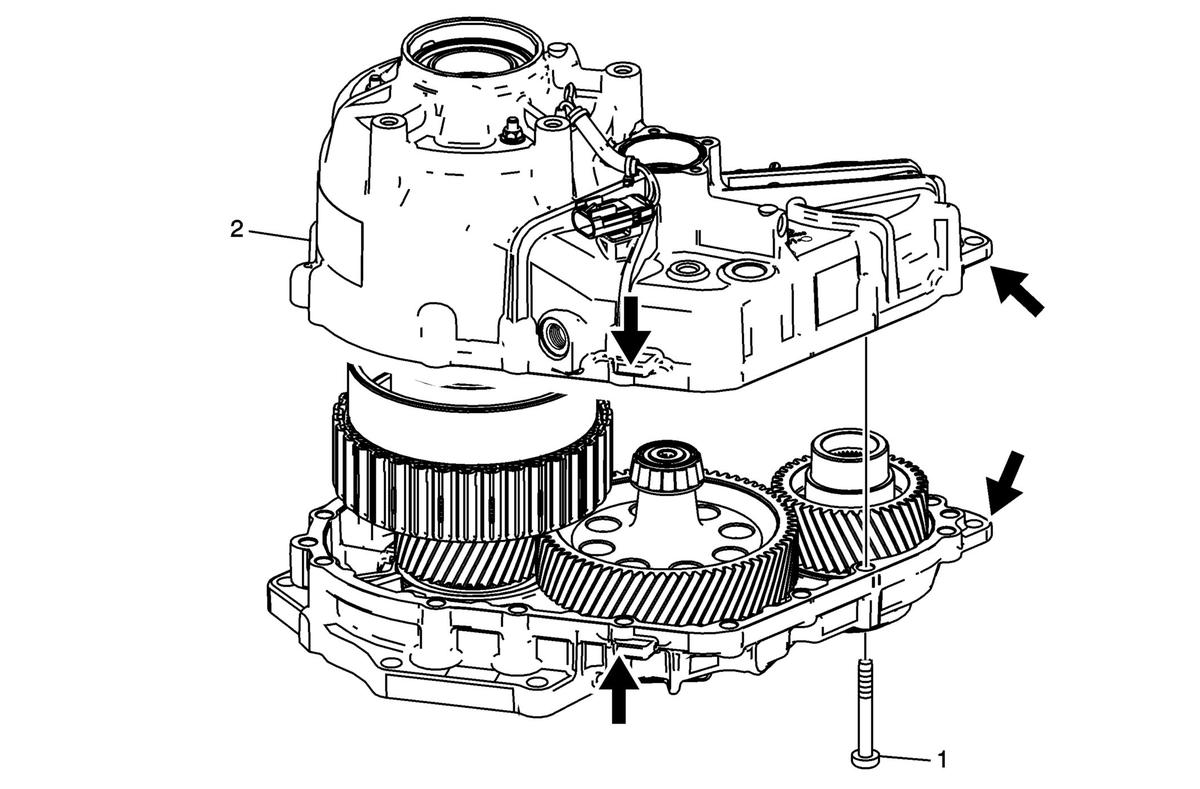

Courtesy of GENERAL MOTORS COMPANY Rear Case Half Removal
| Callout |
Component Name |
| 1 |
Case Half Bolt (Qty: 15) |
| 2 |
Rear Case Half
NOTE:
Separate the case halves using a pry bar at the pry point locations.
|
