Oil Drain Plug, Oil Fill Plug, and Fluid Temperature Sensor Removal

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

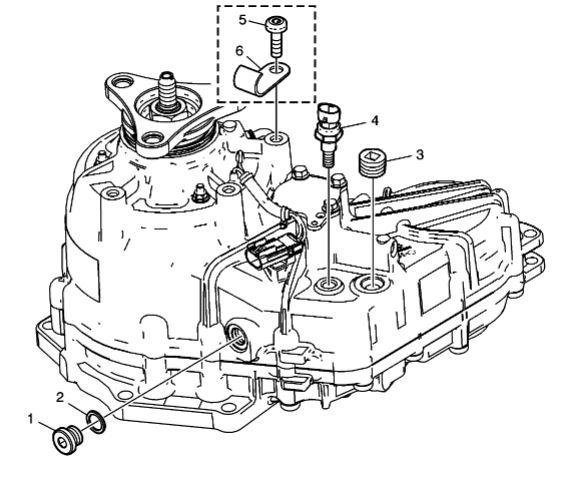

Fig 1: Oil Drain Plug, Oil Fill Plug, and Fluid Temperature Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Oil Fill Plug
2	Oil Fill Plug Seal NOTE: Inspect the seal for wear or damage. The seal is not a separate service part. If seal damage is present, replace the plug and seal as an assembly.
3	Oil Drain Plug
4	Fluid Temperature Sensor
5	Wiring Harness Clip Bolt - Model Dependent
6	Wiring Harness Clip - Model Dependent
