Oil Delivery Tube and Oil Pump Removal
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
Oil Delivery Tube and Oil Pump Removal

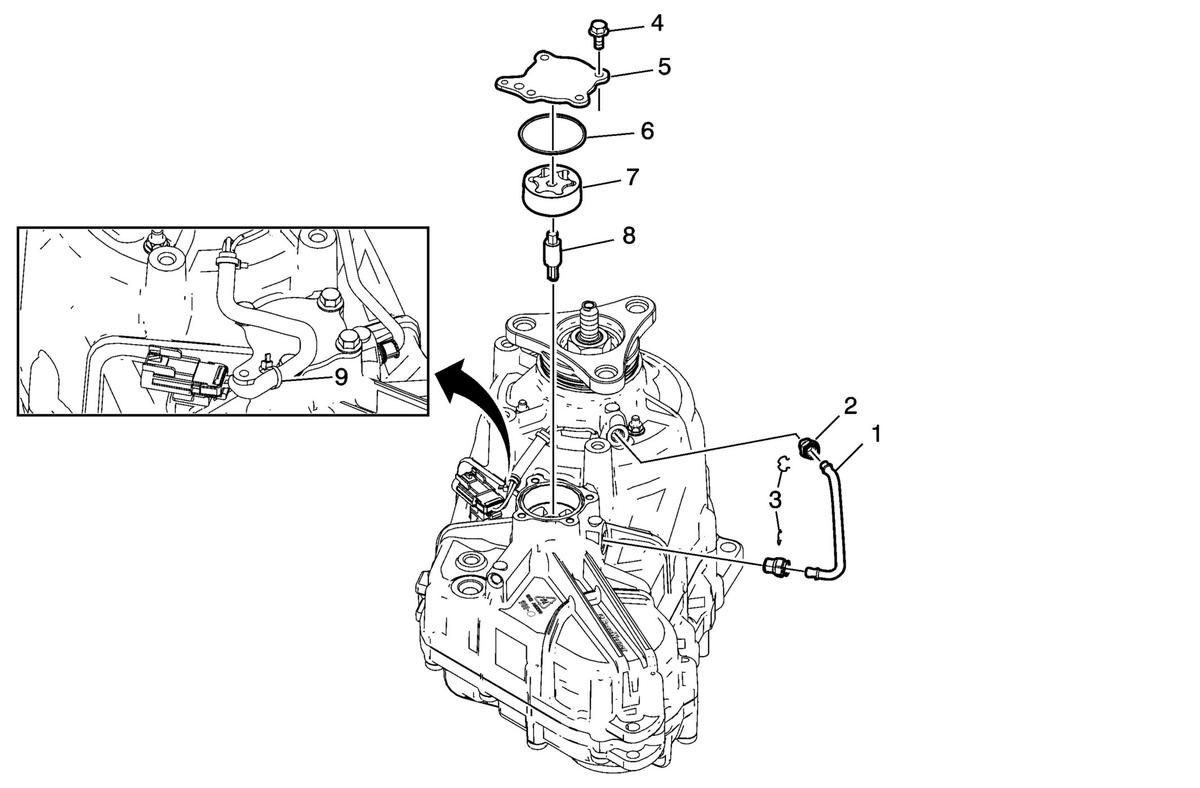

| Callout | Component Name |
|---|---|
| 1 | Oil Distribution Tube Procedure Refer to:New Product Information for more information regarding design changes to tube. |
| 2 | Oil Distribution Tube Fitting
NOTE:
Remove the transfer tube fittings as required. |
| 3 | Oil Distribution Tube Fitting Clip |
| 4 | Oil Pump Bolt |
| 5 | Oil Pump Cover |
| 6 | Oil Pump Seal |
| 7 | Oil Pump Assembly
NOTE:
The orientation of the gears for assembly. The outer gear is to be installed with the orientation marking facing the oil pump cover. |
| 8 | Oil Pump Shaft |
| 9 | Strap |
