Oil Baffle, Oil Pump Screen, and Case Half Locating Pin Removal
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

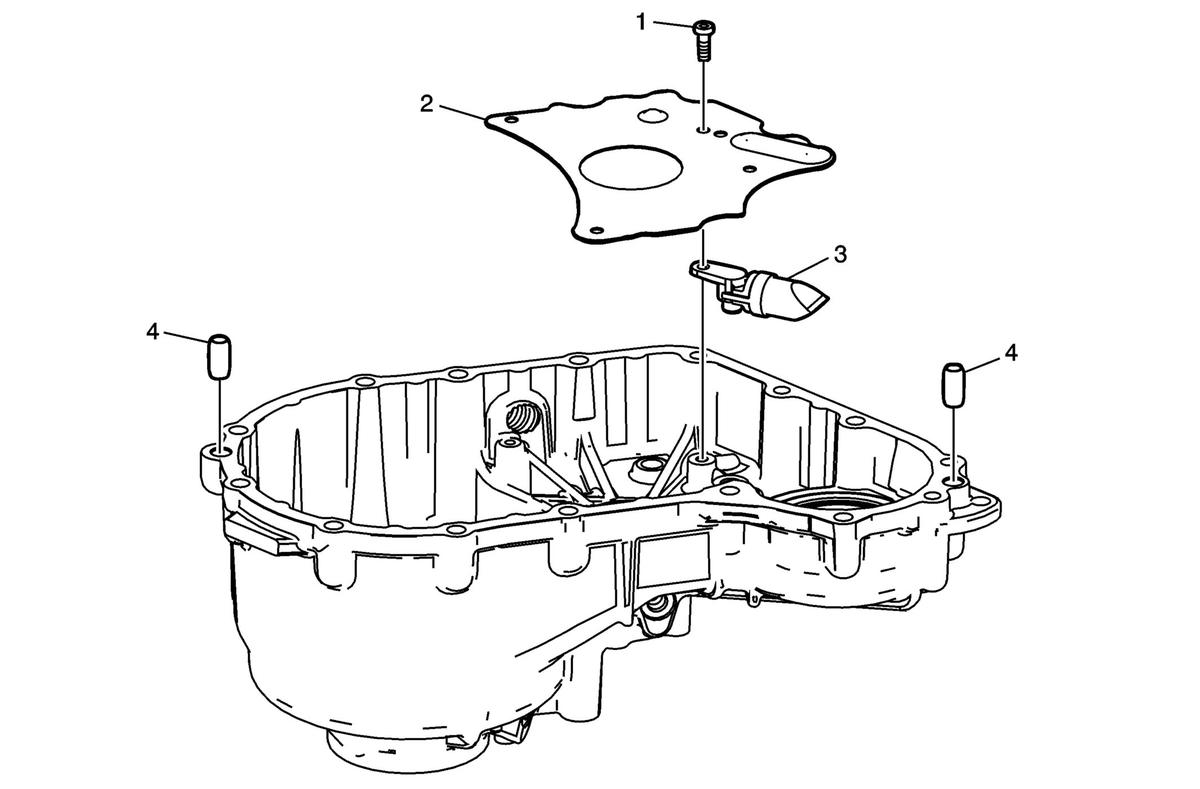

Courtesy of GENERAL MOTORS COMPANY Oil Baffle, Oil Pump Screen, and Case Half Locating Pin Removal
| Callout |
Component Name |
| 1 |
Oil Baffle Bolt (Qty: 4) |
| 2 |
Oil Baffle |
| 3 |
Oil Pump Screen |
| 4 |
Case Half Locating Pin
NOTE:
Remove the pins only as required.
|
