Input Shaft Seal Removal

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

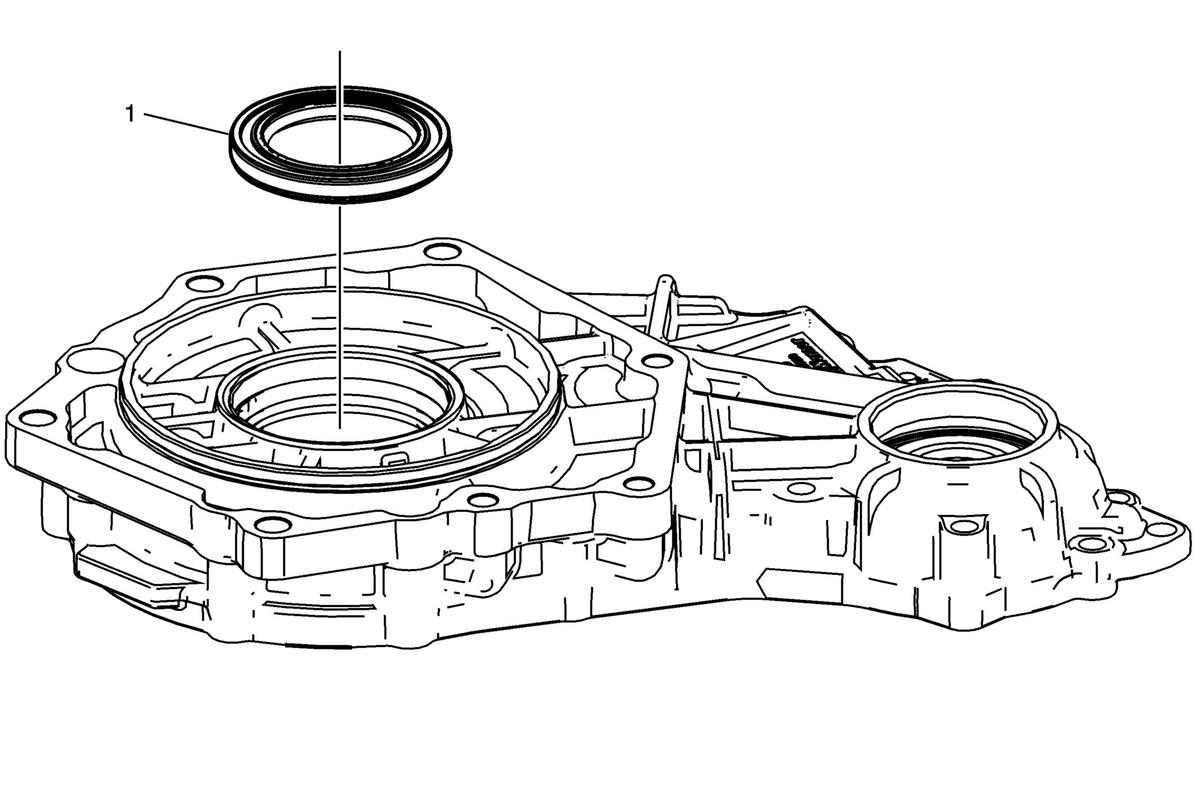

Fig 1: Input Shaft Seal
GM2792096Courtesy of GENERAL MOTORS COMPANY
Input Shaft Seal Removal

Callout Component Name
1 Input Shaft Seal
CAUTION:

Refer to Machined Surface Damage Caution .
