Input Shaft Removal
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

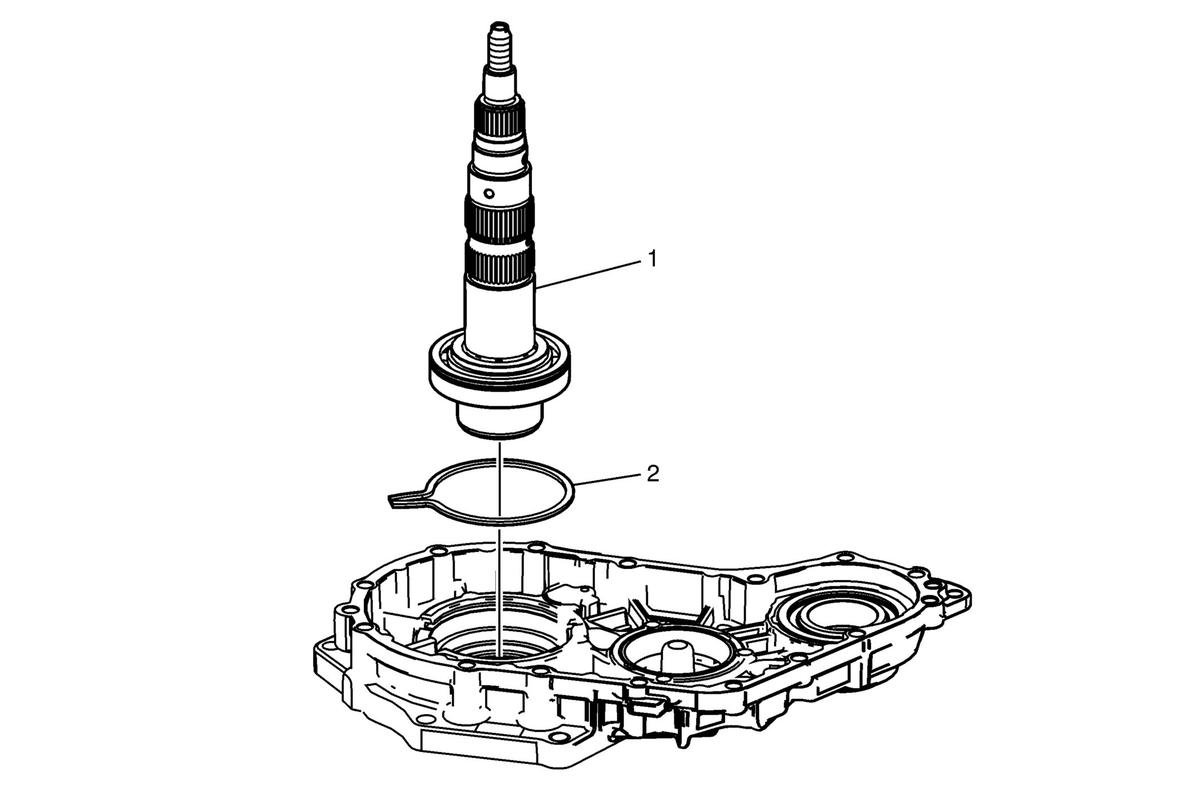

Courtesy of GENERAL MOTORS COMPANY Input Shaft Removal
| Callout |
Component Name |
| 1 |
Input Shaft
NOTE:
Spread the input shaft front bearing retainer ring to remove the input shaft.
|
| 2 |
Input Shaft Front Bearing Retainer Ring (Outer) |
