Input Shaft and Front Output Shaft Cleaning and Inspection

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

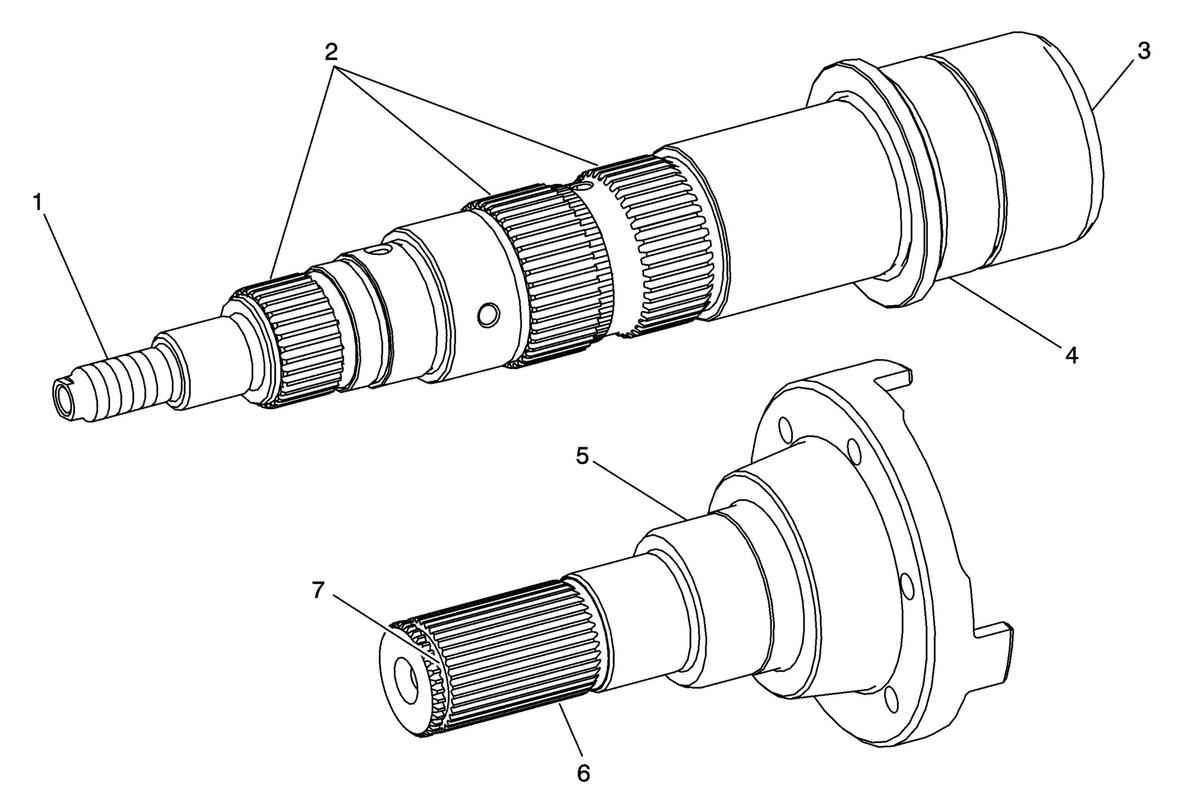

Fig 1: Input Shaft and Front Output Shaft

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Clean the shafts in solvent and air dry, including the input shaft oil galleries. Inspect all components or sub-components and perform any repair procedure necessary to fix the damage.
1	Inspect internal and external threads for damage.
2	Inspect the splines for damage or excessive wear. Witness marks are normal.
3	Input Shaft Assembly NOTE: Inspect the seal surfaces for scoring, rust or other damage.
4	Inspect the bearing journals for scoring, pitting, or excessive wear. NOTE: Do not attempt to smooth roughness in the bearing journals.
5	Front Output Shaft Sealing Surface NOTE: Inspect the seal surfaces for scoring, rust or other damage.
6	Inspect the splines for damage or excessive wear. Witness marks are normal.
7	Front output flange snap ring groove for damage.
