Clutch Coil Assembly Cleaning and Inspection

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

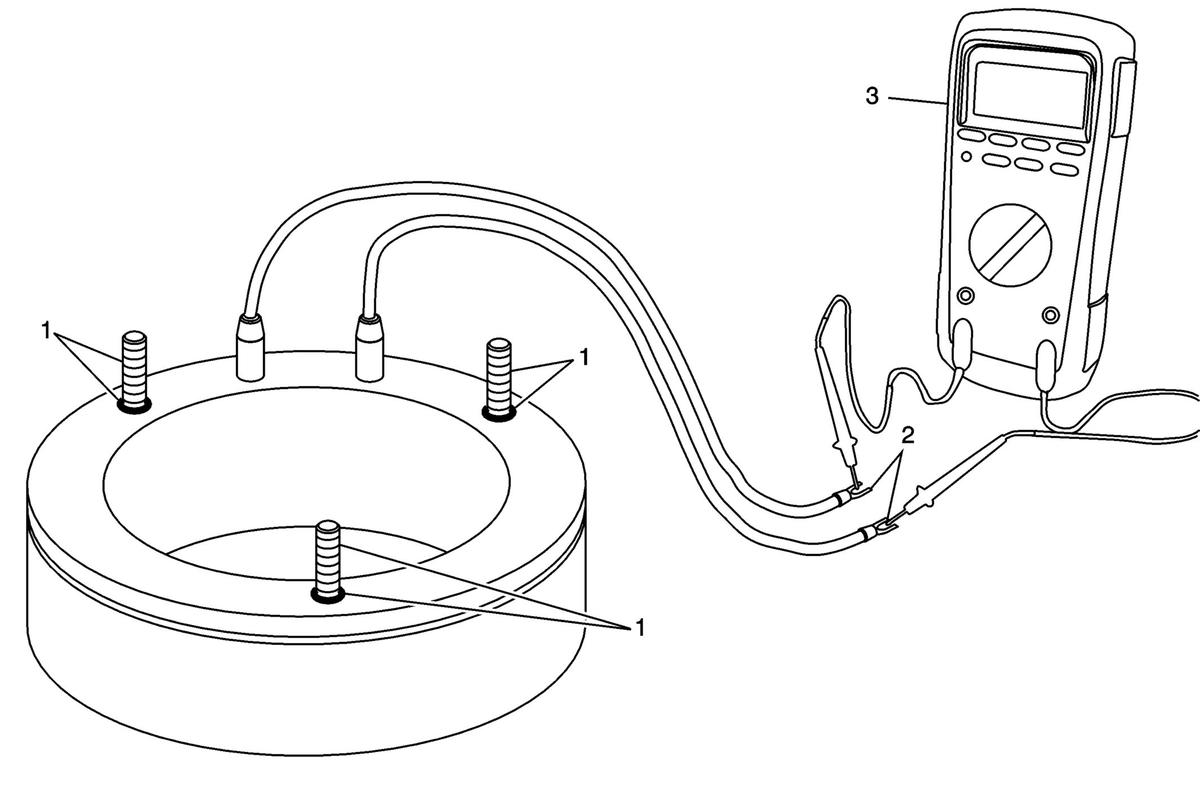

Fig 1: Clutch Coil Assembly Cleaning & Inspection Points

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Clean all components in solvent and air dry. Inspect all components or sub-components and perform any repair procedure necessary to fix the damage.
1	Clutch Coil Assembly Studs NOTE: Inspect the stud threads and coil O-rings for damage. The clutch coil wire and stud O-ring seals are not serviceable separately. If O-ring seal damage is present, replace the clutch coil and seals as an assembly.
2	Clutch Coil Assembly Wires NOTE: Inspect the wires and terminals for damage. Repair, as required.
3	Clutch Coil Resistance Check NOTE: The clutch coil resistance should not exceed 2.5-3.5 ohms at 20°C (68°F).
