Vibration Dampener Installation

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

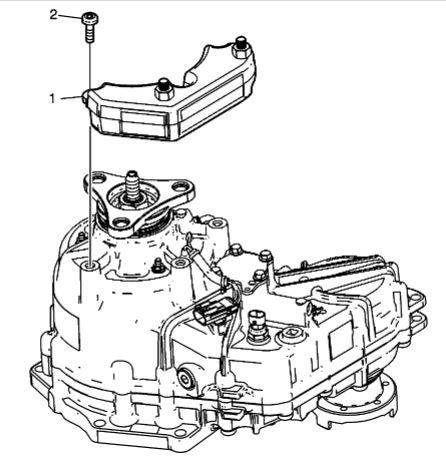

Fig 1: Vibration Dampener

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Vibration Dampener - Model Dependent
2	Vibration Dampener Bolt - Model Dependent CAUTION: Refer to Fastener Caution . Tighten 36 N.m (27 lb ft)
