Vent and Adapter Studs Installation

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

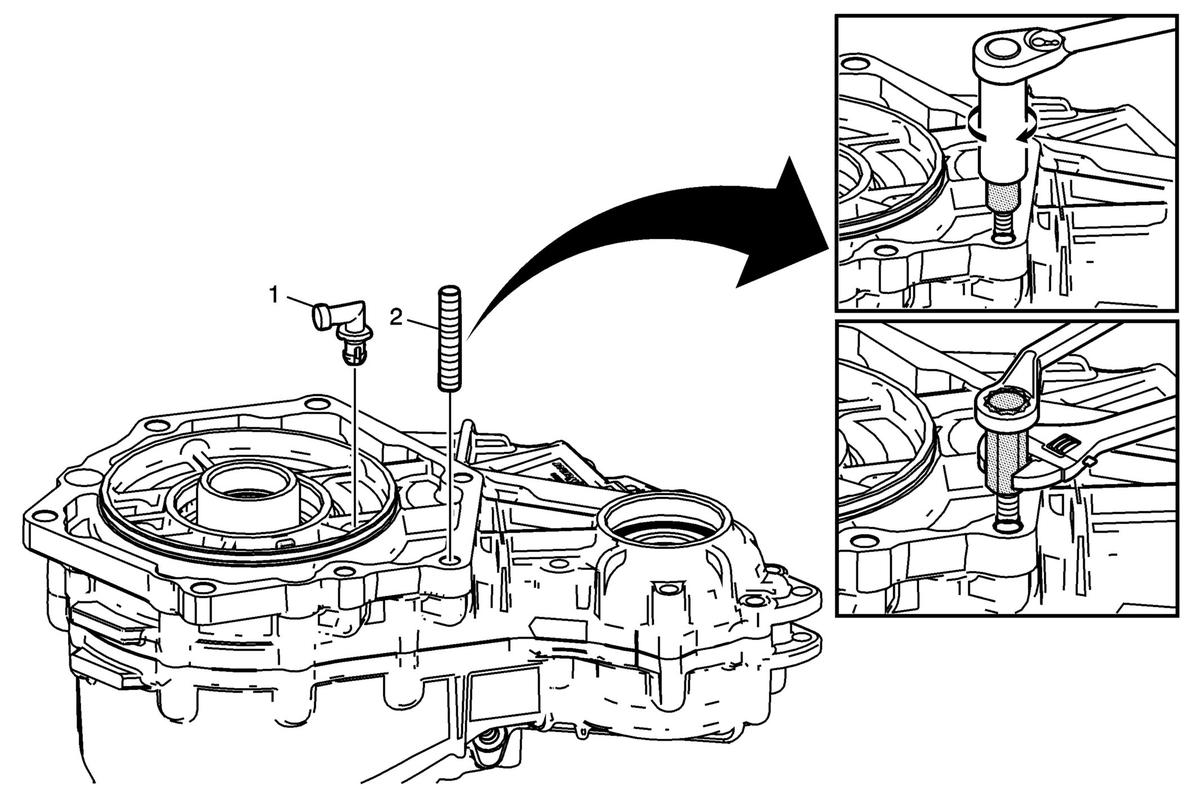

Fig 1: Vent and Adapter Studs

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Vent NOTE: If the vent has been removed, install a NEW vent during assembly.
2	Transfer Case Stud CAUTION: Refer to Machined Surface Damage Caution . CAUTION: Refer to Fastener Caution . Procedure Apply threadlock to the stud threads before installation. Apply threadlock only to the threads on the end of the stud that will be installed into the transfer case front half. Adhesives, Fluids, Lubricants, and Sealers Install DT-49308 installer onto the stud. Rotate the bolt until it contacts the top of the stud. Install a deep socket over both the head of the bolt and the long nut and tighten the stud to specification. Loosen the long nut and remove the tool from the stud. Inspect the studs for the proper installation height. A properly installed stud should protrude from the face of the case 30.3-31.1 mm (1.19-1.23 in). Tighten 11 N.m (97 lb in) Special Tools DT-49308 Stud Remover and Installer Equivalent regional tools: Special Tools .

Callout

Component Name

Vent

NOTE:

If the vent has been removed, install a NEW vent during assembly.

Transfer Case Stud

CAUTION:

Refer to Machined Surface Damage Caution .

CAUTION:

Refer to Fastener Caution .

Procedure

Apply threadlock to the stud threads before installation. Apply threadlock only to the threads on the end of the stud that will be installed into the transfer case front half. Adhesives, Fluids, Lubricants, and Sealers
Install DT-49308 installer onto the stud.
Rotate the bolt until it contacts the top of the stud.
Install a deep socket over both the head of the bolt and the long nut and tighten the stud to specification.
Loosen the long nut and remove the tool from the stud.
Inspect the studs for the proper installation height. A properly installed stud should protrude from the face of the case 30.3-31.1 mm (1.19-1.23 in).

Tighten
11 N.m (97 lb in)
Special Tools
DT-49308 Stud Remover and Installer
Equivalent regional tools: Special Tools .
