Rear Output Shaft Seal Installation

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

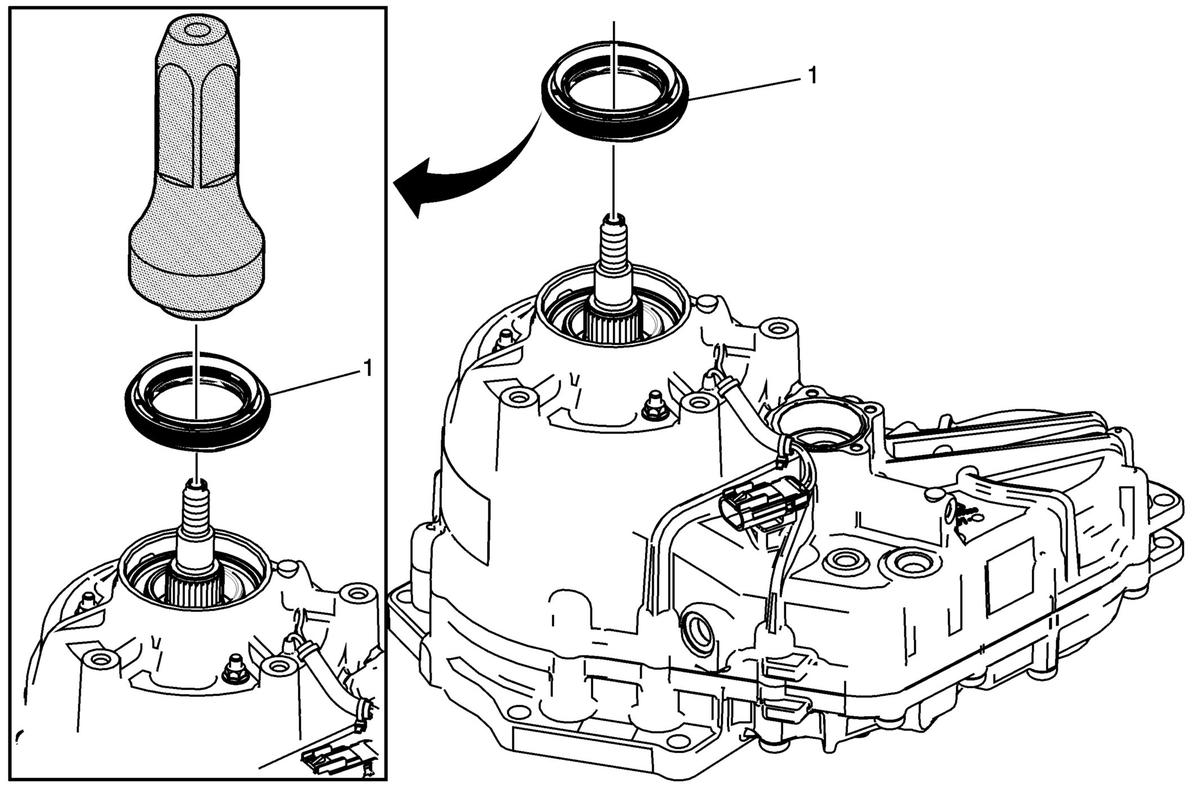

Fig 1: Rear Output Shaft Seal

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Rear Output Shaft Seal CAUTION: Refer to Machined Surface Damage Caution . Special Tools DT-49861-A Seal Installer Equivalent regional tools:Special Tools .
