Rear Output Shaft Rear Bearing Installation

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

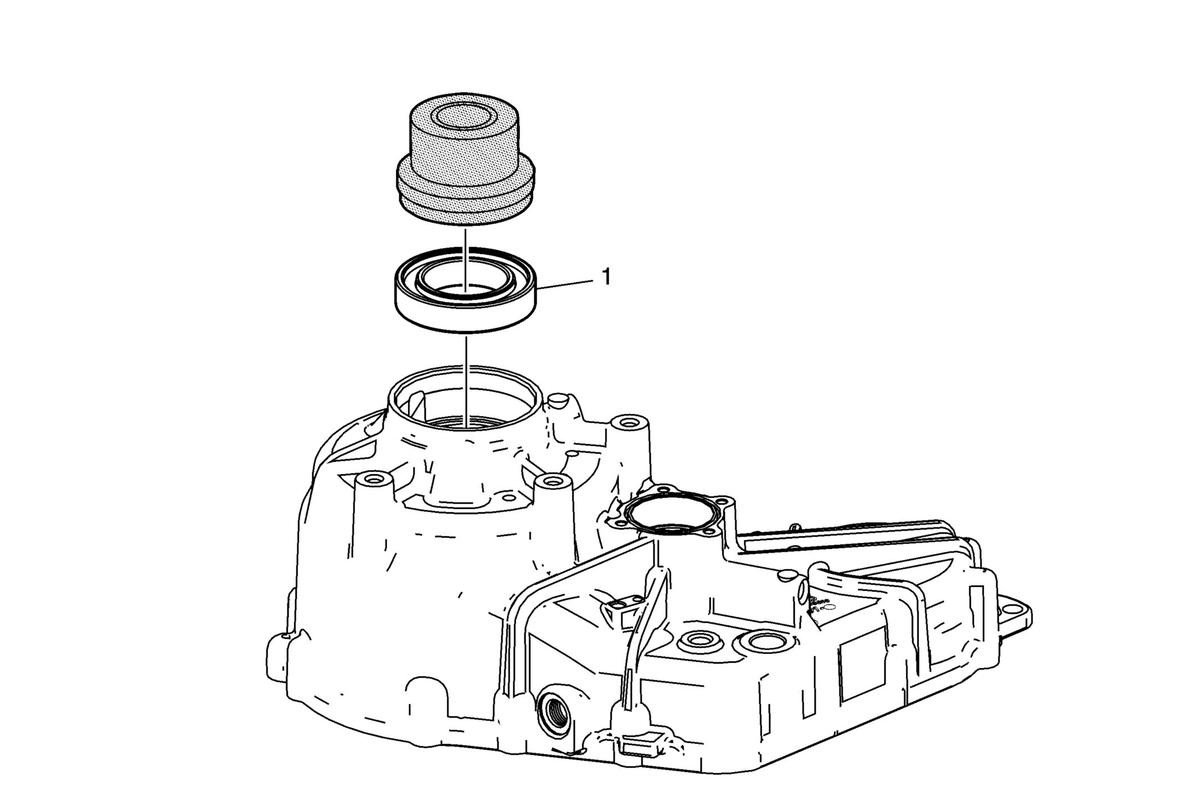

Fig 1: Rear Output Shaft Rear Bearing
GM2748569Courtesy of GENERAL MOTORS COMPANY
Rear Output Shaft Rear Bearing Installation

Callout Component Name
1 Rear Output Shaft Rear Bearing
Special Tools
J-33142  Bearing and Seal Installer
Equivalent regional tools:Special Tools .
