Rear Output Shaft Flange Installation

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

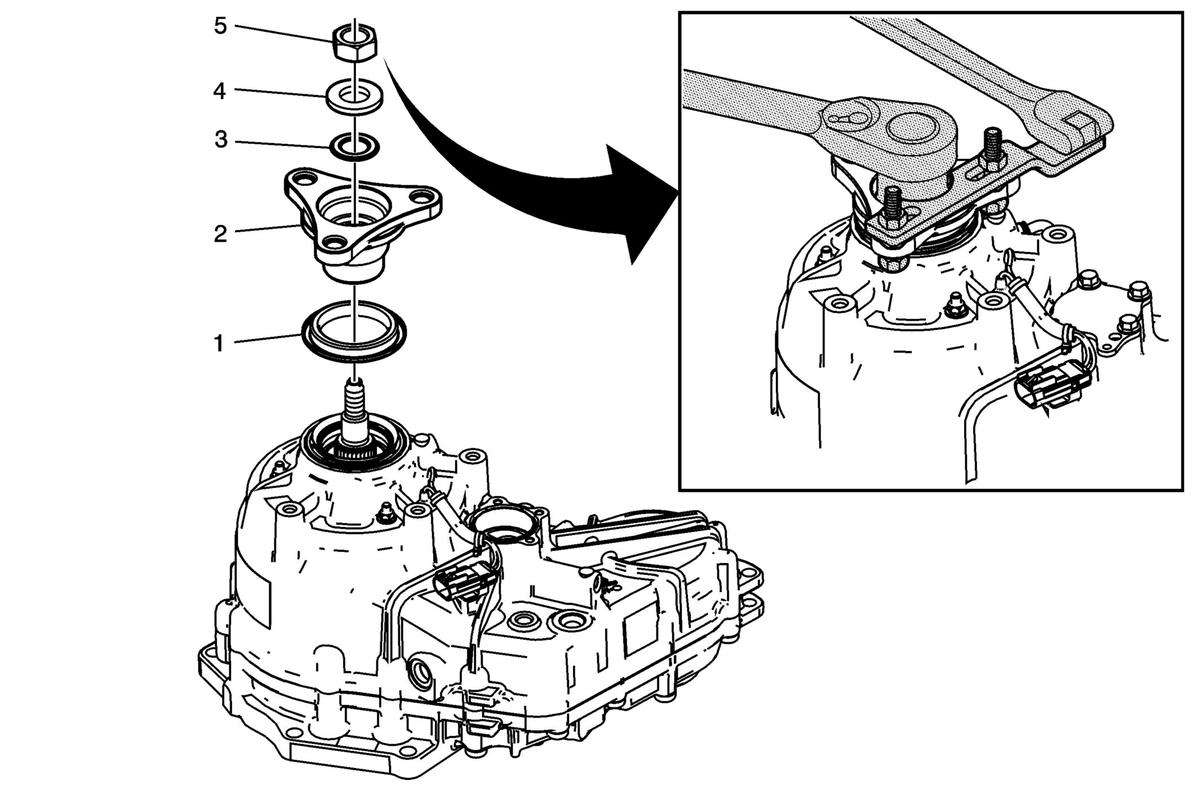

Fig 1: Rear Output Shaft Flange

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Rear Output Shaft Seal Dirt Deflector Special Tools J-41736 Bearing Installer Equivalent regional tools: Special Tools .
2	Rear Output Shaft Flange Procedure Apply sealant to the rear output shaft flange splines. Adhesives, Fluids, Lubricants, and Sealers
3	Rear Output Shaft Flange O-ring Seal
4	Rear Output Shaft Flange Washer NOTE: Install a NEW washer.
5	Rear Output Shaft Flange Nut CAUTION: Refer to Fastener Caution . NOTE: Install a NEW nut. Use M10 x 1.5 mm nuts and bolts to retain the tool to the flange. Tighten 319 N.m (235 lb in) Special Tools J-45012 Holding Fixture Equivalent regional tools: Special Tools .
