Rear Case Half Installation

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

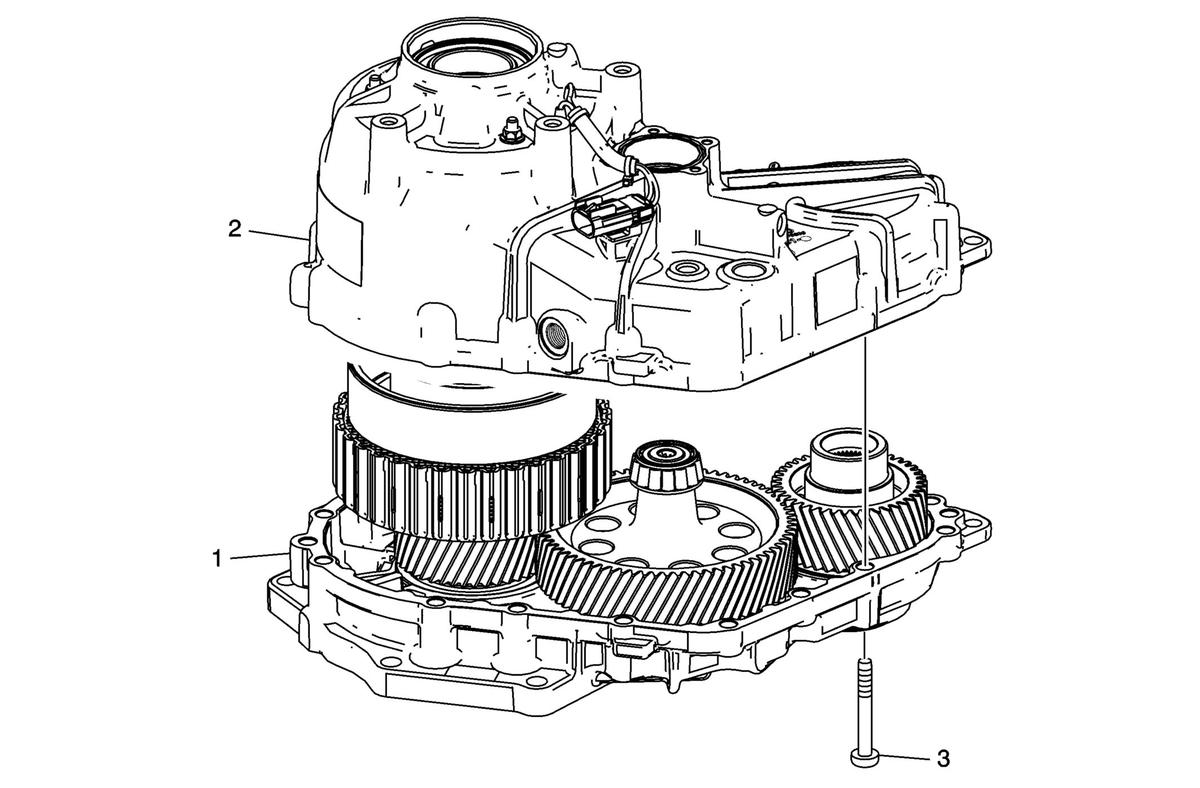

Fig 1: Rear Case Half

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Front Case Half CAUTION: Apply the proper amount of the sealant when assembling this component. Excessive use of the sealant can prohibit the component from sealing properly. A component that is not sealed properly can leak leading to extensive engine damage. Procedure Ensure both sealing surfaces of the front and rear case halves are free of dirt, oil and cleaning solvent. Apply a 3-4 mm (0.12-0.16 in) bead of sealant to the sealing service of the front case half. Adhesives, Fluids, Lubricants, and Sealers
2	Rear Case Half
3	Case Half Bolt (Qty: 15) CAUTION: Refer to Fastener Caution . Tighten 36 N. m (27 lb ft)

Callout

Component Name

Front Case Half

CAUTION:

Apply the proper amount of the sealant when assembling this component. Excessive use of the sealant can prohibit the component from sealing properly. A component that is not sealed properly can leak leading to extensive engine damage.

Procedure

Ensure both sealing surfaces of the front and rear case halves are free of dirt, oil and cleaning solvent.
Apply a 3-4 mm (0.12-0.16 in) bead of sealant to the sealing service of the front case half. Adhesives, Fluids, Lubricants, and Sealers

Rear Case Half

Case Half Bolt (Qty: 15)

CAUTION:

Refer to Fastener Caution .

Tighten
36 N. m (27 lb ft)
