Oil Fill Plug, Drain Plug, and Fluid Temperature Sensor Installation
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

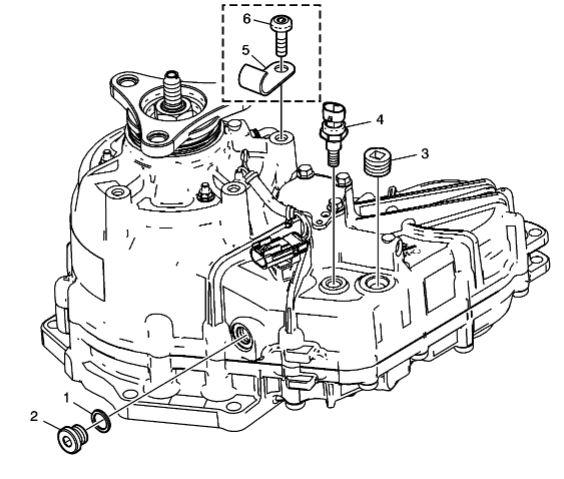

Oil Fill Plug, Drain Plug, and Fluid Temperature Sensor Installation
| Callout | Component Name |
|---|---|
| 1 | Oil Fill Plug Seal |
| 2 | Oil Fill Plug
CAUTION:
Refer to Fastener Caution . Tighten 15 N.m (11 lb ft) |
| 3 | Oil Drain Plug Procedure Apply sealant to the threads of the drain plug. Adhesives, Fluids, Lubricants, and Sealers Tighten 25 N.m (18 lb ft) |
| 4 | Fluid Temperature Sensor Tighten 22 N.m (16 lb ft) |
| 5 | Wiring Harness Clip - Model Dependent |
| 6 | Wiring Harness Clip Bolt - Model Dependent Tighten 36 N.m (27 lb ft) |
