Oil Distribution Hub and Two/Four Wheel Drive Clutch Coil Housing Installation
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

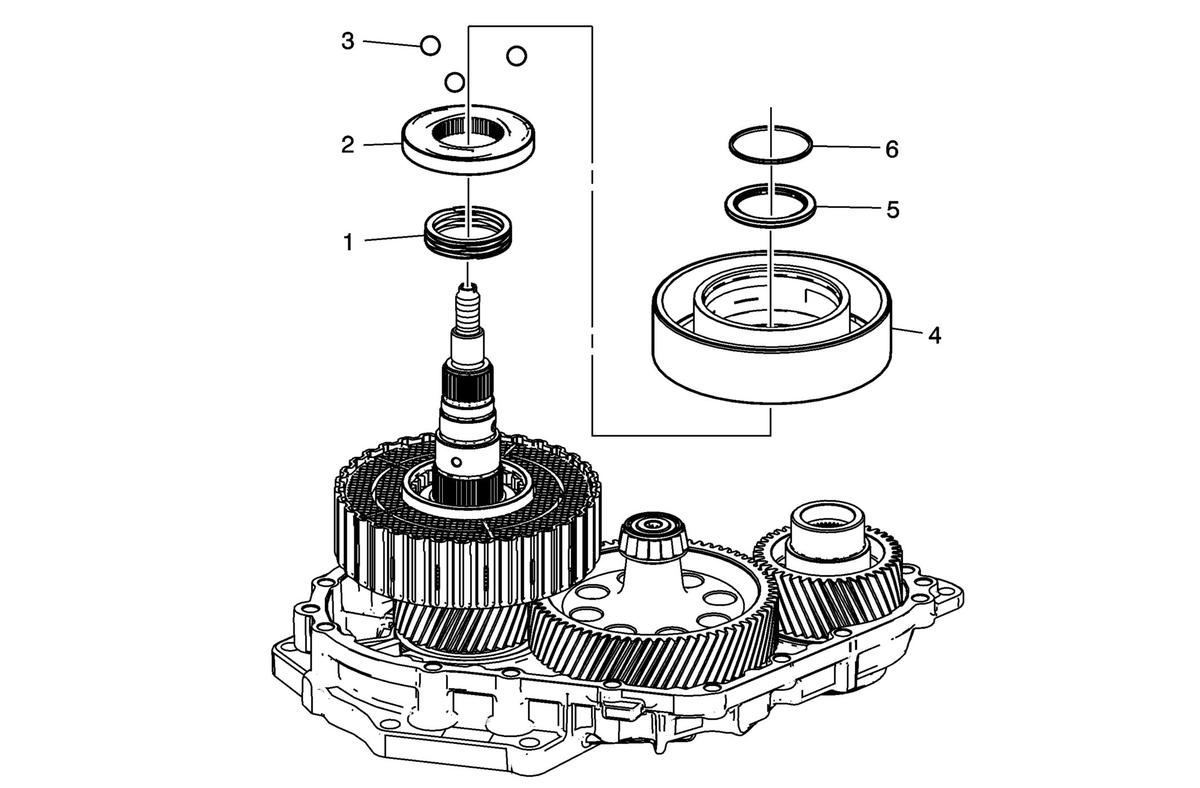

Oil Distribution Hub and Two/Four Wheel Drive Clutch Coil Housing Installation
| Callout | Component Name |
|---|---|
| 1 | Four Wheel Drive Clutch Spring |
| 2 | Apply Cam |
| 3 | Apply Cam Ball (Qty: 3) |
| 4 | Two/Four Wheel Drive Clutch Coil Housing |
| 5 | Four Wheel Drive Clutch Housing Bearing |
| 6 | Four Wheel Drive Clutch Shim |
