Oil Baffle, Oil Pump Screen, and Case Half Locating Pin Installation
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

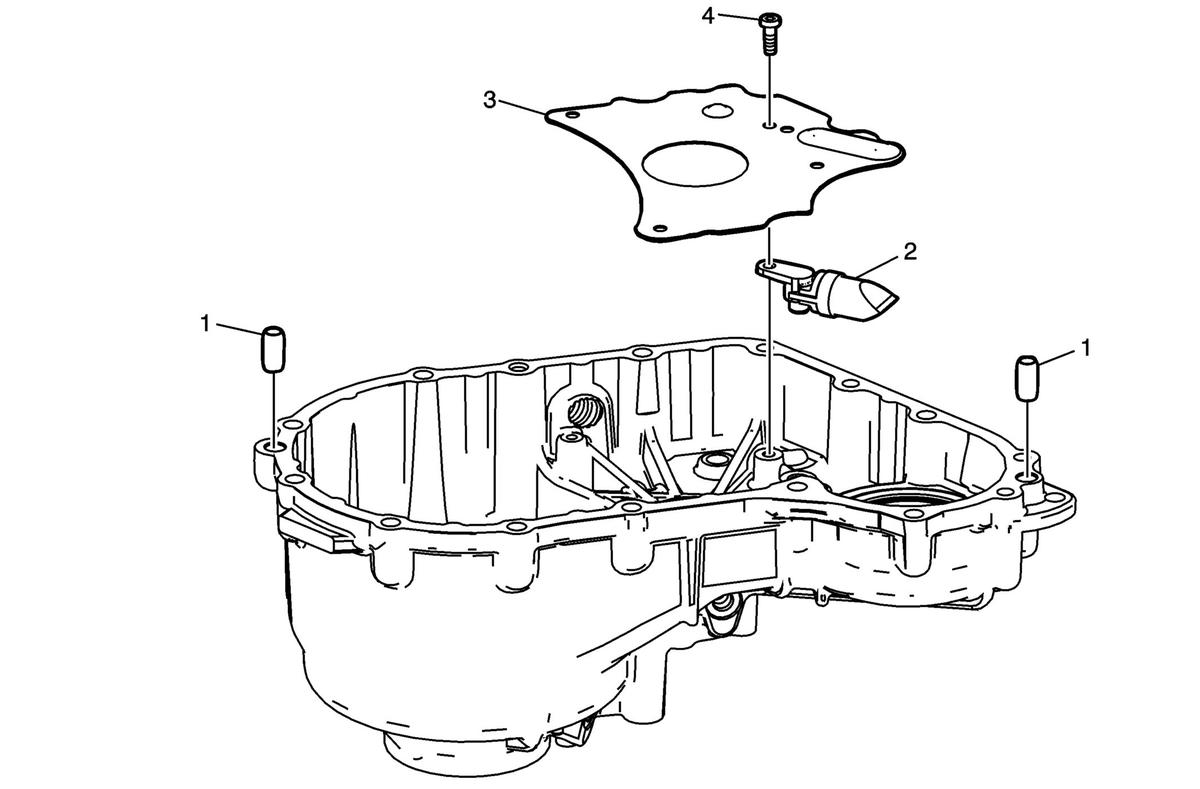

Oil Baffle, Oil Pump Screen, and Case Half Locating Pin Installation
| Callout | Component Name |
|---|---|
| 1 | Case Half Locating Pin (Qty: 2) |
| 2 | Oil Pump Screen |
| 3 | Oil Baffle |
| 4 | Oil Baffle Bolt (Qty: 4)
CAUTION:
Refer to Fastener Caution . Tighten 8 N.m (71 lb in) |
