Input Shaft Seal Installation

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

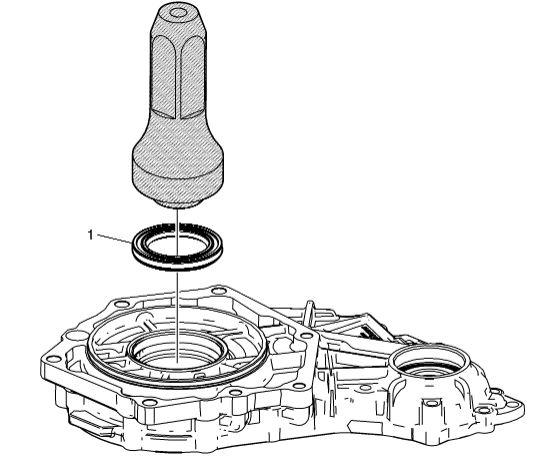

Fig 1: Input Shaft Seal
GM2748699Courtesy of GENERAL MOTORS COMPANY
Input Shaft Seal Installation

Callout Component Name
1 Input Shaft Seal
Special Tools
J-42738  Seal Installer
Equivalent regional tools: Special Tools .
