Input Bearing Installation
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

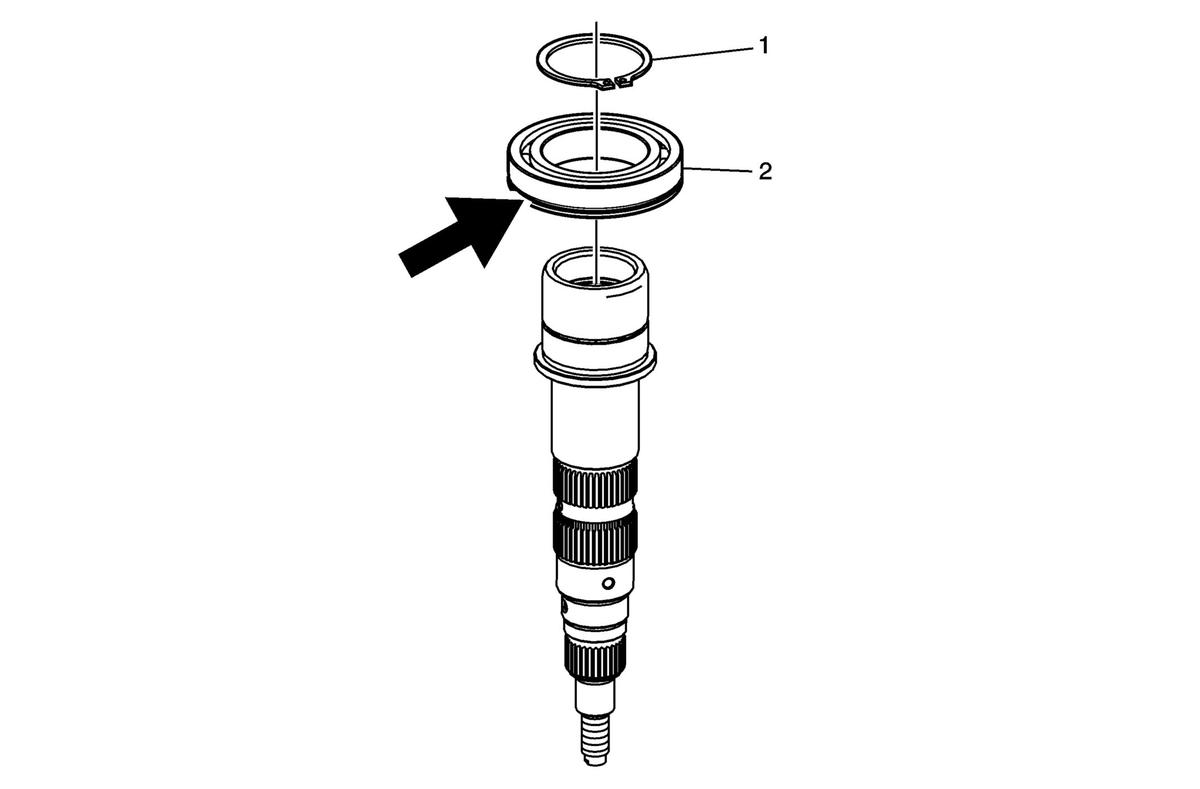

Courtesy of GENERAL MOTORS COMPANY Input Bearing Installation
| Callout |
Component Name |
| 1 |
Input Shaft Front Bearing Retainer Ring (Inner) |
| 2 |
Input Bearing
NOTE:
Install the front bearing onto the shaft with the retaining ring groove facing the shaft flange.
|
