Idler Gear, Front Output Shaft Gear, and Oil Baffle Installation
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

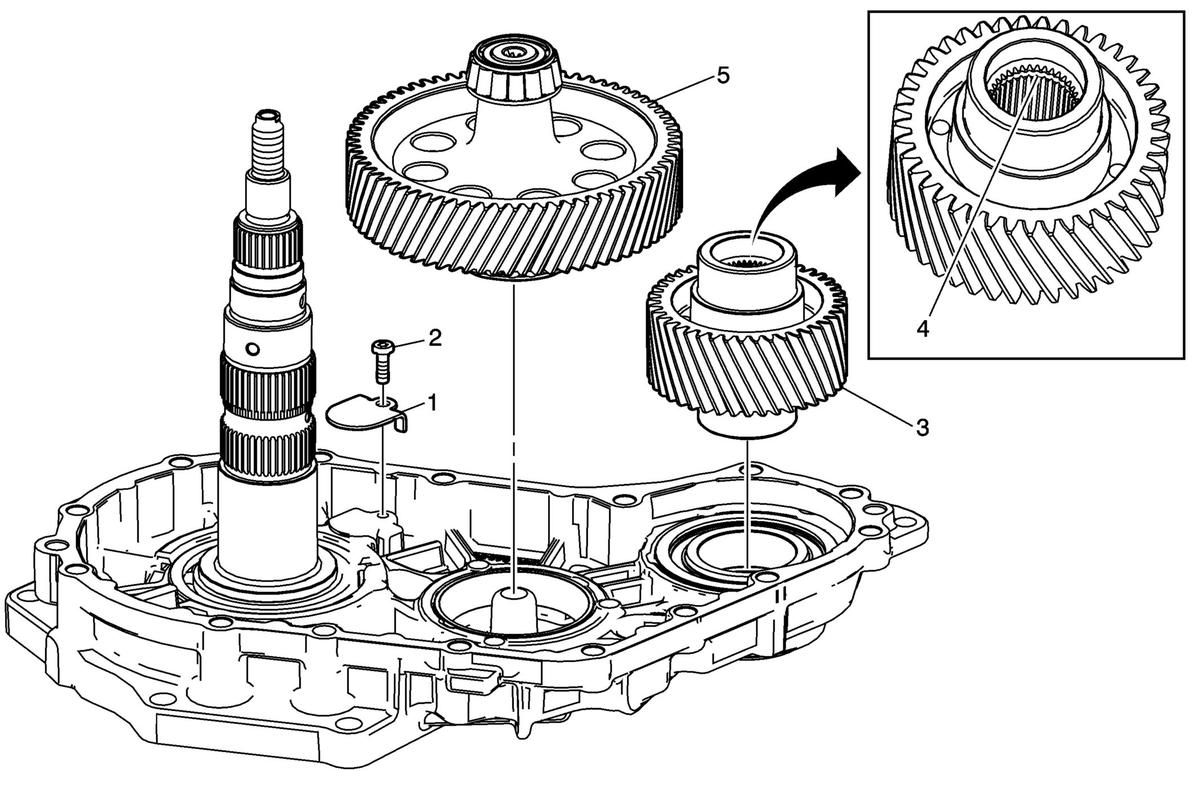

Idler Gear, Front Output Shaft Gear, and Oil Baffle Installation
| Callout | Component Name |
|---|---|
| 1 | Oil Baffle |
| 2 | Oil Baffle Bolt
CAUTION:
Refer to Fastener Caution . Tighten 8N.m (70 lb in) |
| 3 | Front Output Shaft Gear
NOTE:
The orientation of the gear and the location of the front output shaft snap ring groove (4) for assembly. The gear is to be installed with the front output shaft snap ring groove (4) groove facing away from the front case half. |
| 4 | Front Output Shaft Snap Ring Internal Groove |
| 5 | Idler Gear
NOTE:
The case halves, idler gear, and idler gear bearings and races are not available as separate service parts. If component replacement is required, the transfer case is to be replaced as an assembly. |
