Front Output Shaft Seal Installation
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

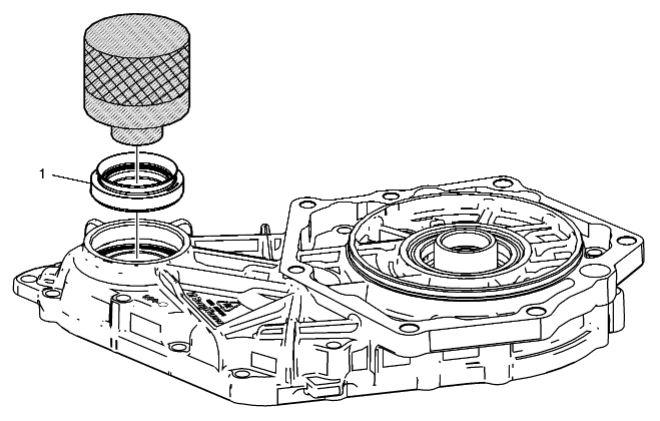

Front Output Shaft Seal Installation
| Callout | Component Name |
|---|---|
| 1 | Front Output Shaft Seal
CAUTION:
Refer to Machined Surface Damage Caution .
NOTE:
Install the seal until flush with the face of the case. Special Tools J-47847 Output Seal Installer Equivalent regional tools: Special Tools |
