Front Output Shaft Installation
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
Front Output Shaft Installation

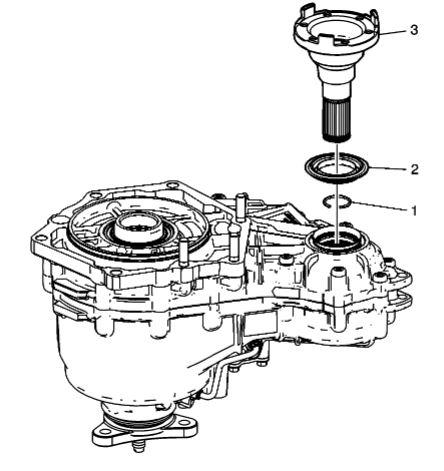

| Callout | Component Name |
|---|---|
| 1 | Front Output Shaft Retaining Ring
NOTE:
Install a NEW front output shaft retaining ring. |
| 2 | Front Output Shaft Seal Dirt Deflector |
| 3 | Front Output Shaft
NOTE:
Use a rubber type mallet to install the shaft and to seat the snap ring into the ID groove of the front output gear |
