Front Output Shaft Front Bearing and Idler Gear Front Bearing Race Installation

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

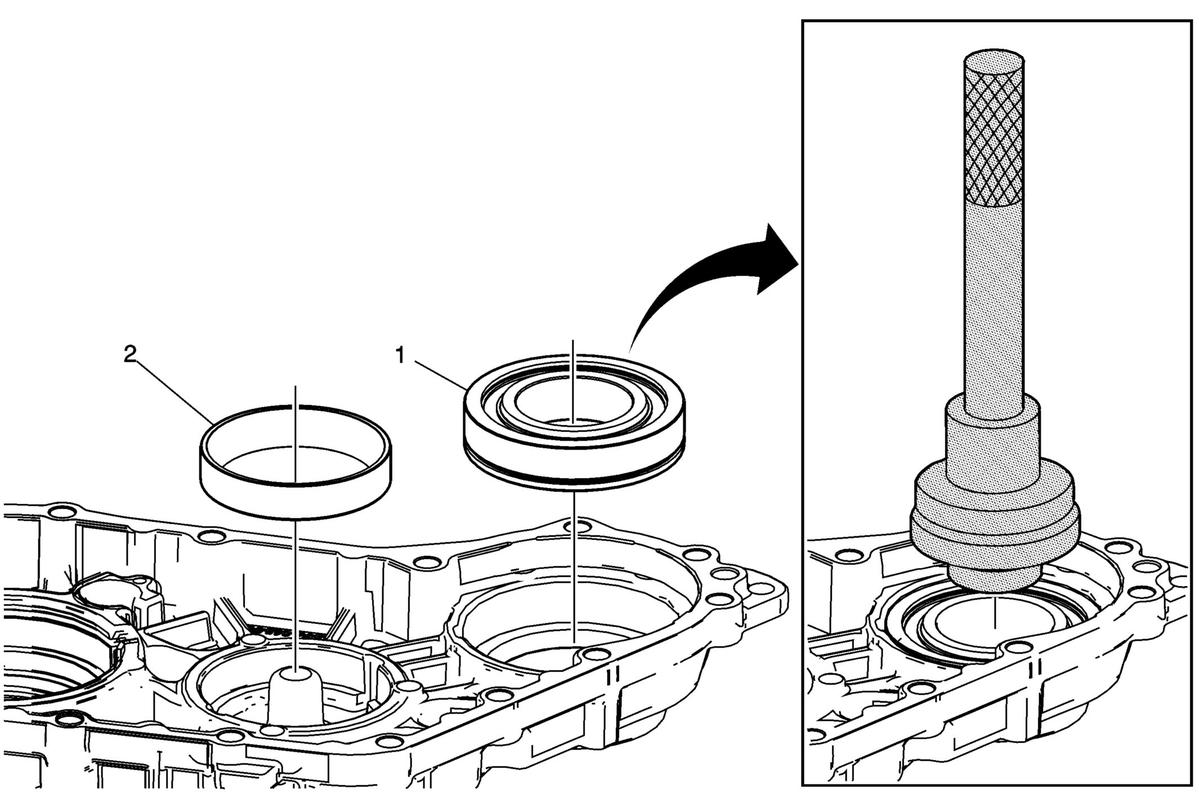

Fig 1: Front Output Shaft Front Bearing and Idler Gear Front Bearing Race

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Front Output Shaft Front Bearing Special Tools DT-8092 Driver Handle J-38412 Bearing Cup Installer Equivalent regional tools:Special Tools .
2	Idler Gear Front Bearing Race NOTE: DO NOT remove the idler gear bearing race from the case half. The case halves, idler gear, and idler gear bearings and races are not available as separate service parts. If component replacement is required, the transfer case is to be replaced as an assembly.

Callout

Component Name

Front Output Shaft Front Bearing

Special Tools

DT-8092 Driver Handle
J-38412 Bearing Cup Installer

Equivalent regional tools:Special Tools .

Idler Gear Front Bearing Race

NOTE:

DO NOT remove the idler gear bearing race from the case half. The case halves, idler gear, and idler gear bearings and races are not available as separate service parts. If component replacement is required, the transfer case is to be replaced as an assembly.
