Section 217 (Rear Drive Axle)
>>
Schematic Wiring Diagrams
>>
Differential Lock Wiring Schematics
>>
Electronic Limited-Slip Rear Axle (G96)
Electronic Limited-Slip Rear Axle (G96)
WARNING:
This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

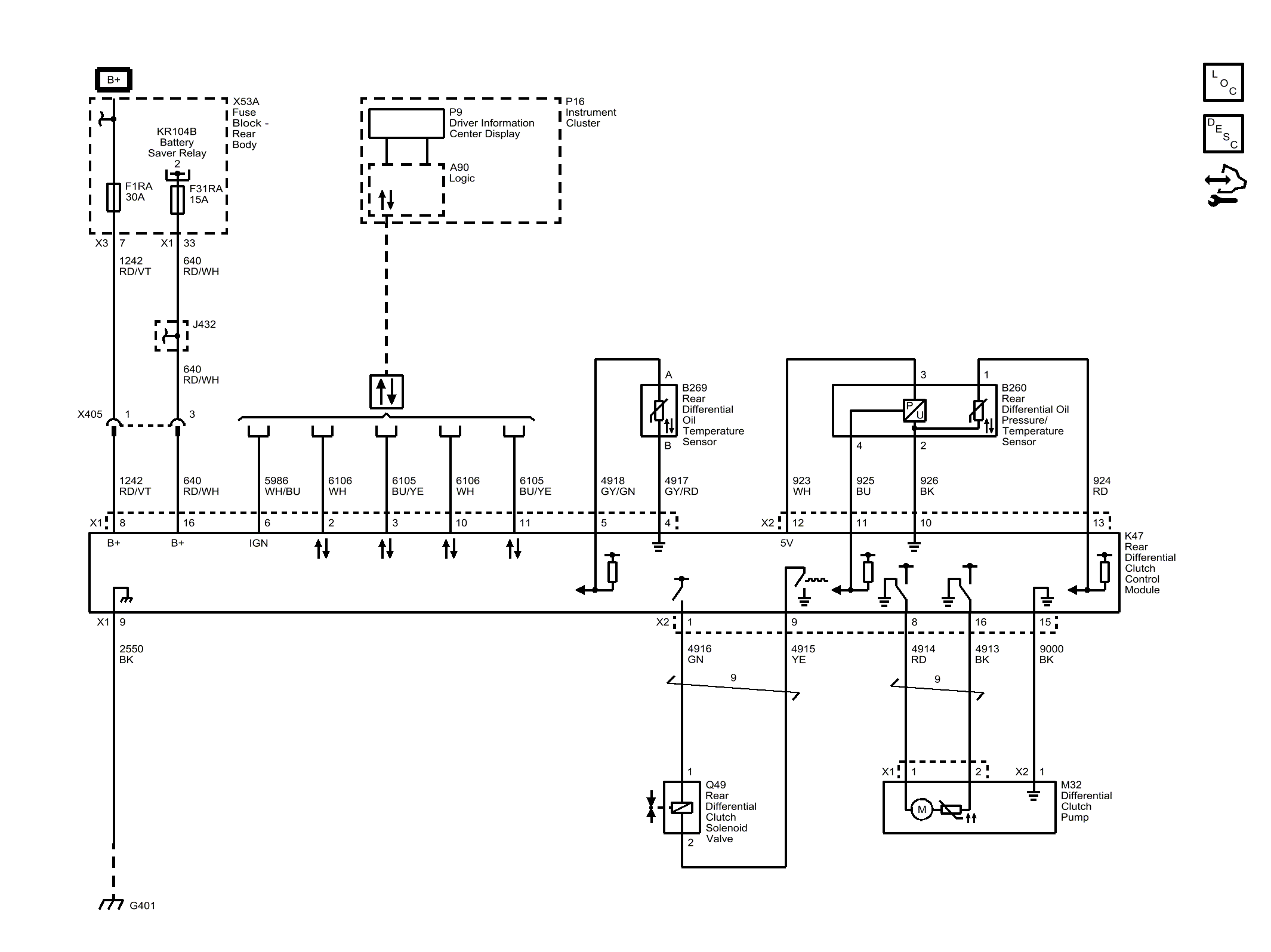

Fig 1: Electronic Limited-Slip Rear Axle (G96)
Courtesy of GENERAL MOTORS COMPANY
