Wiring Harness Connector Replacement (226mm eLSD)
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the differential clutch pump bracket bolts to gain access to back side of the rear axle differential lock control actuator assembly. It is not necessary to disconnect the differential oil hoses. Refer to Rear Axle Differential Lock Control Actuator Replacement (226mm eLSD) . |
|

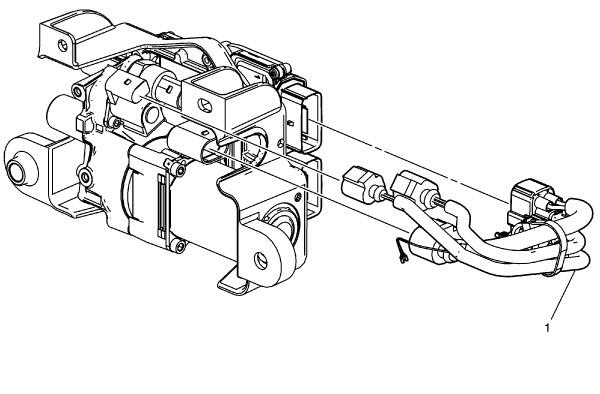

| 1 | Wiring Harness Connector Assembly |
