Removal Procedure

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle (ATS)Lifting and Jacking the Vehicle (ATS-V) .
Remove the propeller shaft assembly. Refer to Two-Piece Propeller Shaft Replacement (LTG, LGX, LCV)Two-Piece Propeller Shaft Replacement (LF4) .

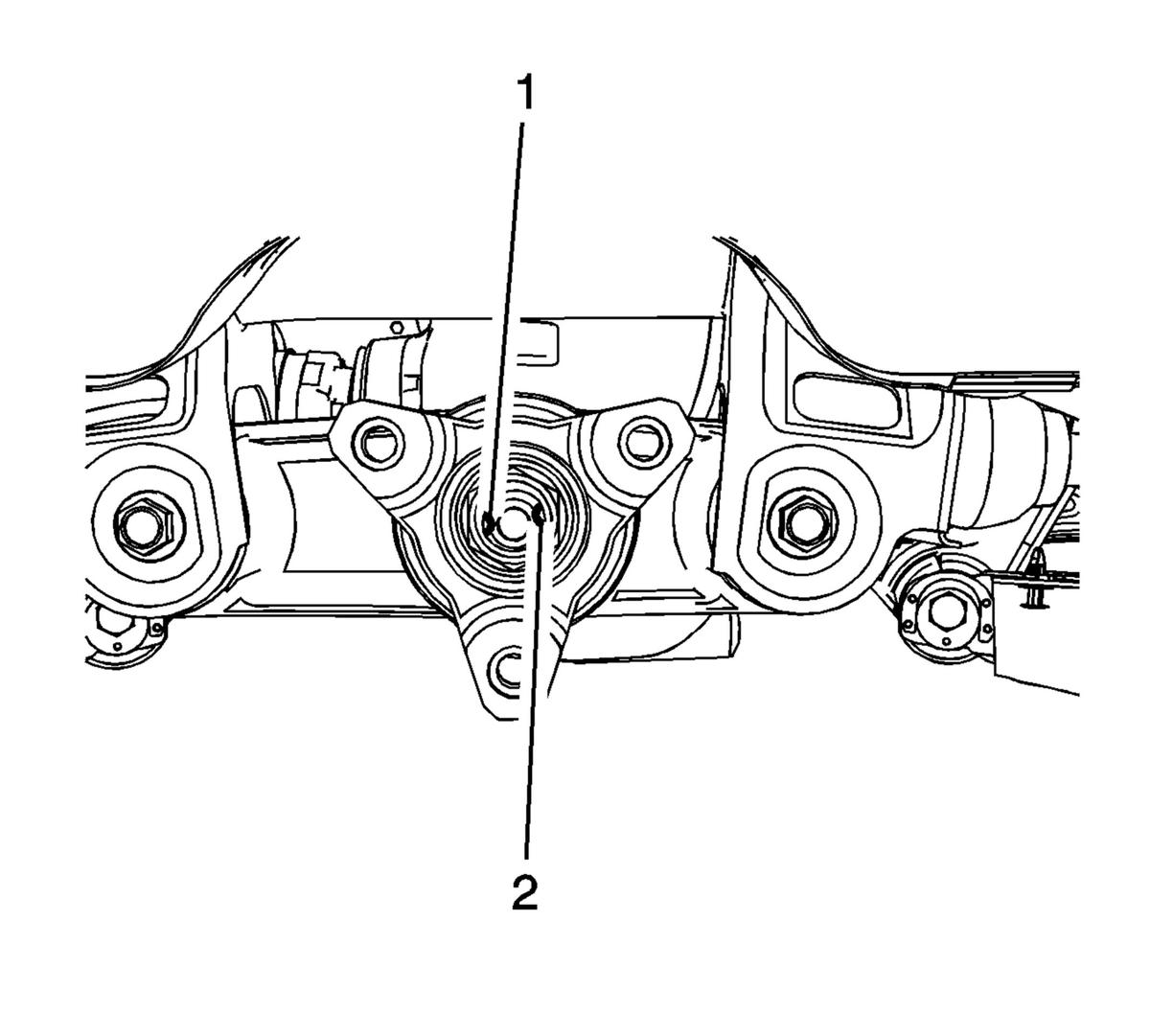

Fig 1: Rear Wheel Drive Shaft Flange Nut Stakes

Courtesy of GENERAL MOTORS COMPANY

Using the appropriate tools, remove the stakes (1) and (2) from the rear wheel drive shaft flange nut.

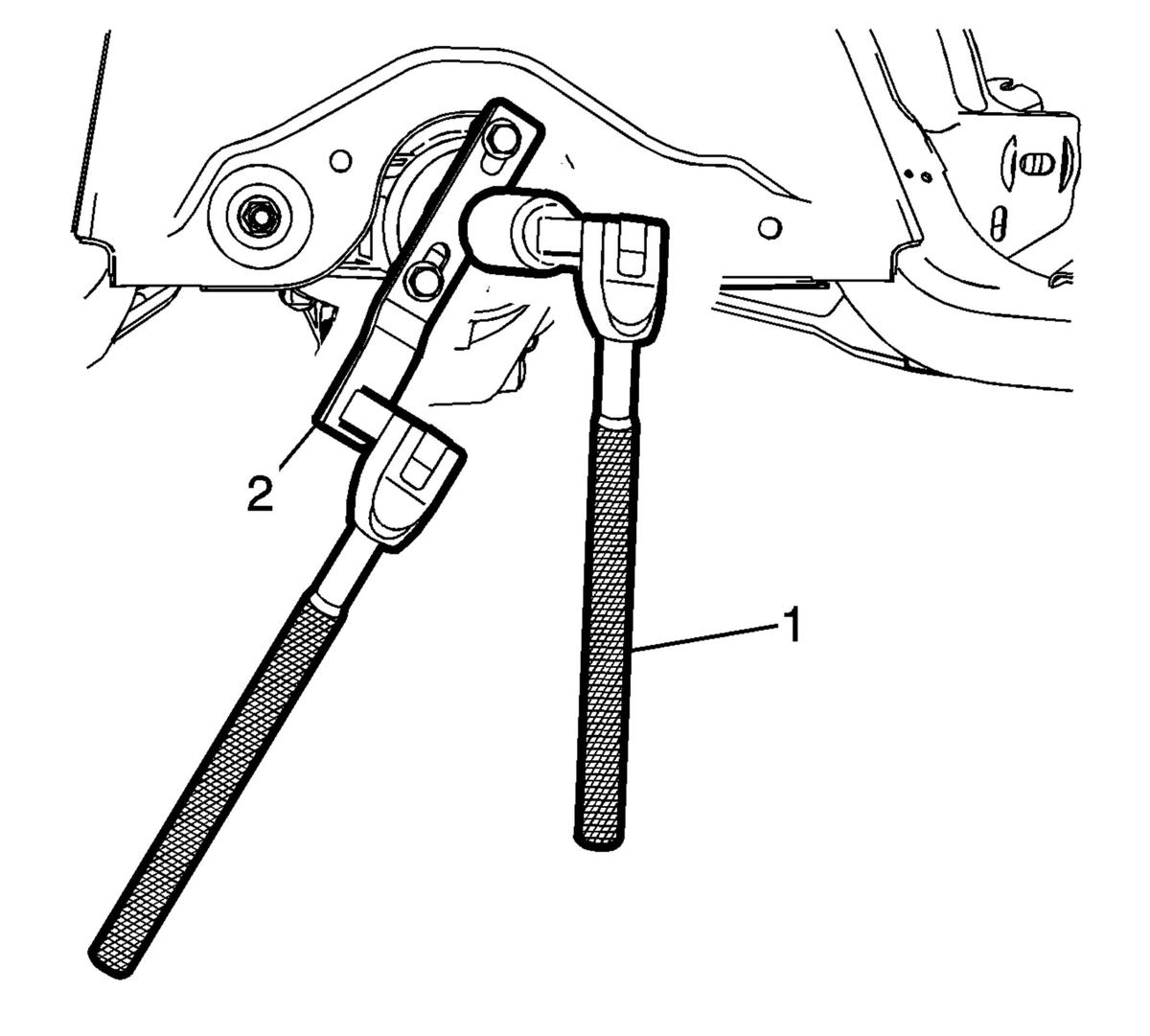

Fig 2: Holding Fixture & Breaker Bar

Courtesy of GENERAL MOTORS COMPANY

Using the DT 45012 fixture with a breaker bar (2), hold the rear wheel drive shaft flange.
Using the proper size socket and the breaker bar (1), loosen the rear wheel drive shaft flange nut.

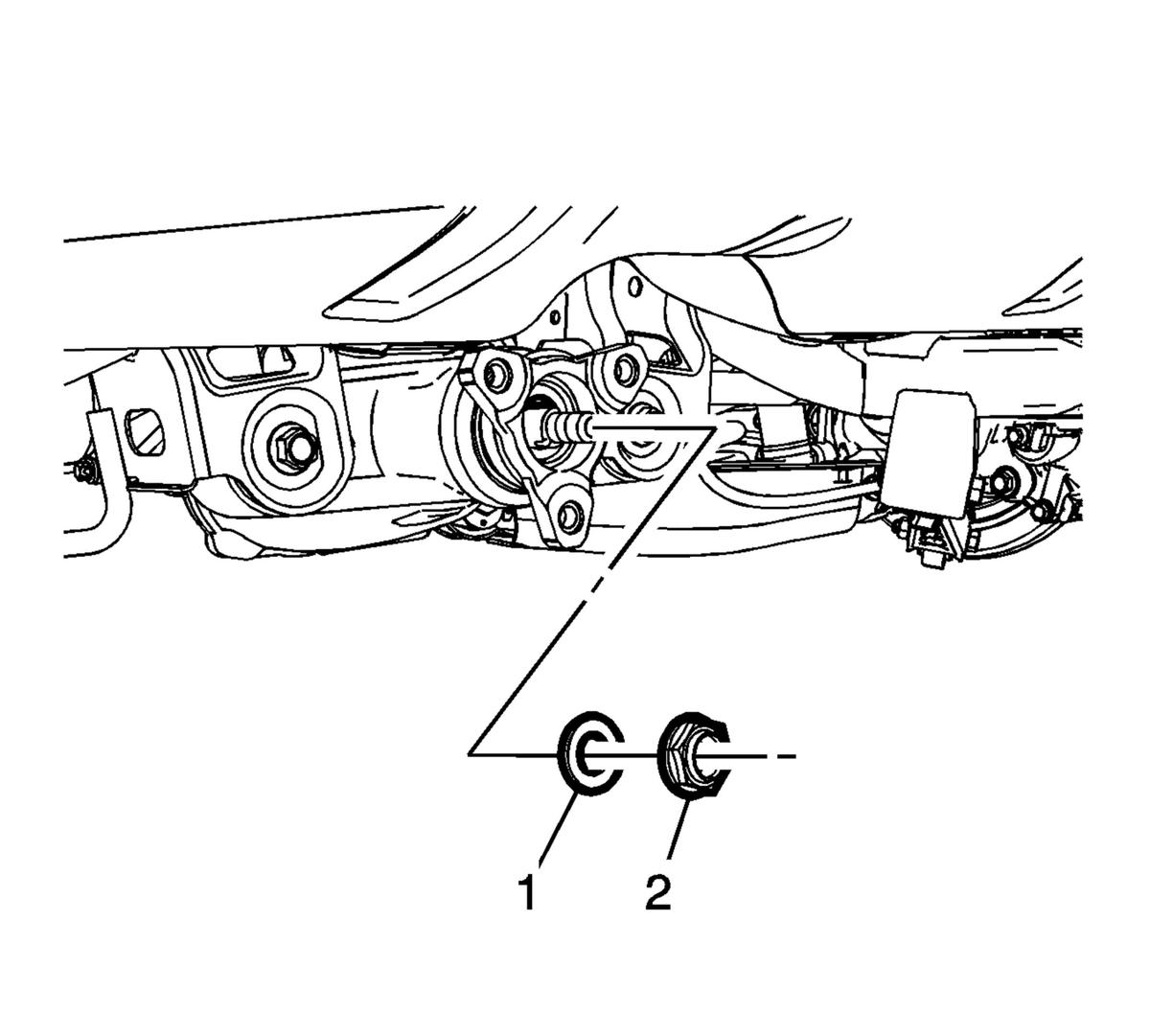

Fig 3: Rear Wheel Drive Shaft Flange Nut & Washer

Courtesy of GENERAL MOTORS COMPANY

Remove the rear wheel drive shaft flange nut (2) and the washer (1).
Discard the rear wheel drive shaft flange nut (2). Replace with NEW only.

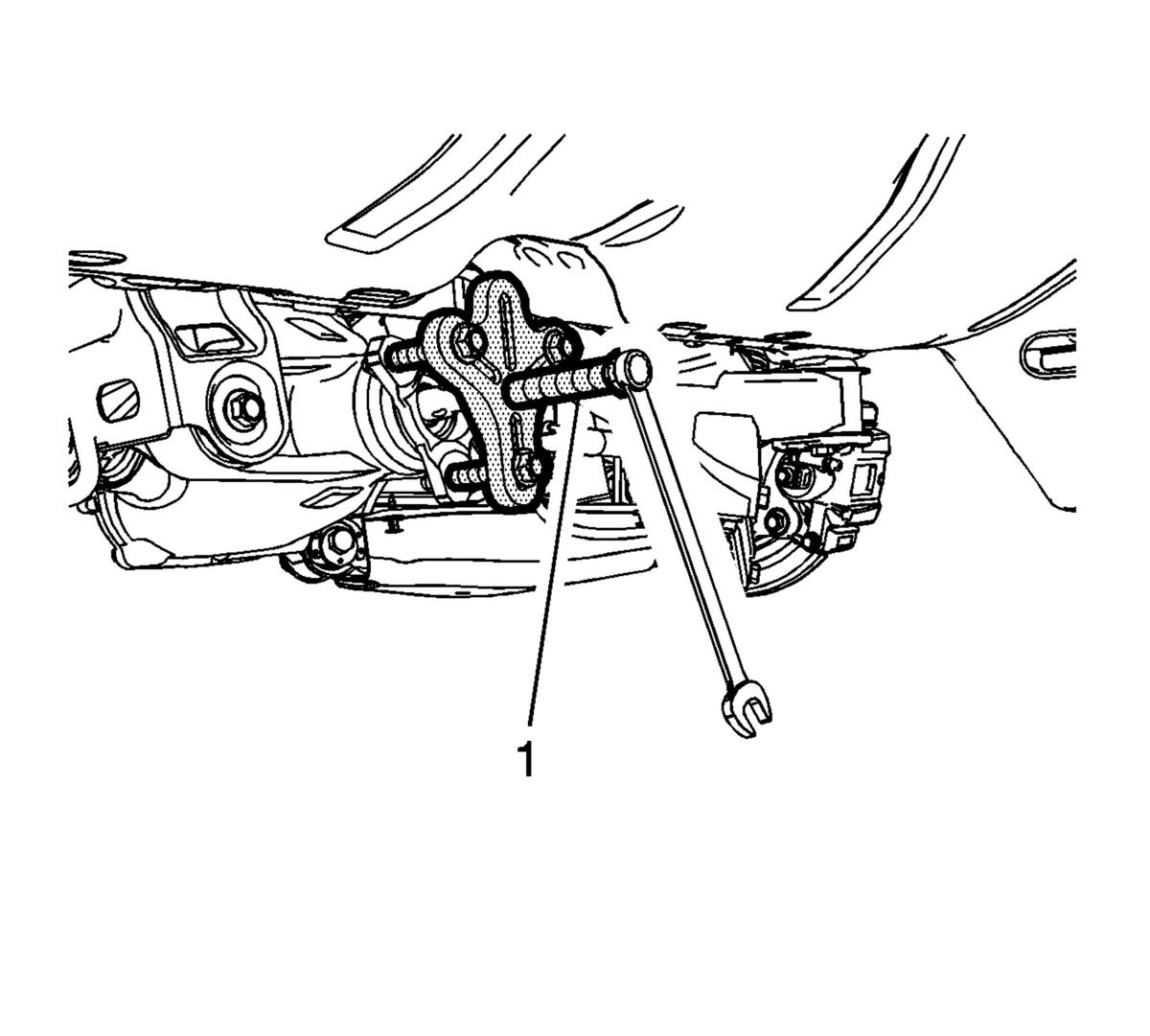

Fig 4: Rear Wheel Drive Shaft Flange Puller

Courtesy of GENERAL MOTORS COMPANY

Using the EN 24420-A puller (1), remove the rear wheel drive shaft flange.
