Rear Axle Shaft Replacement (195/218mm Axles)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

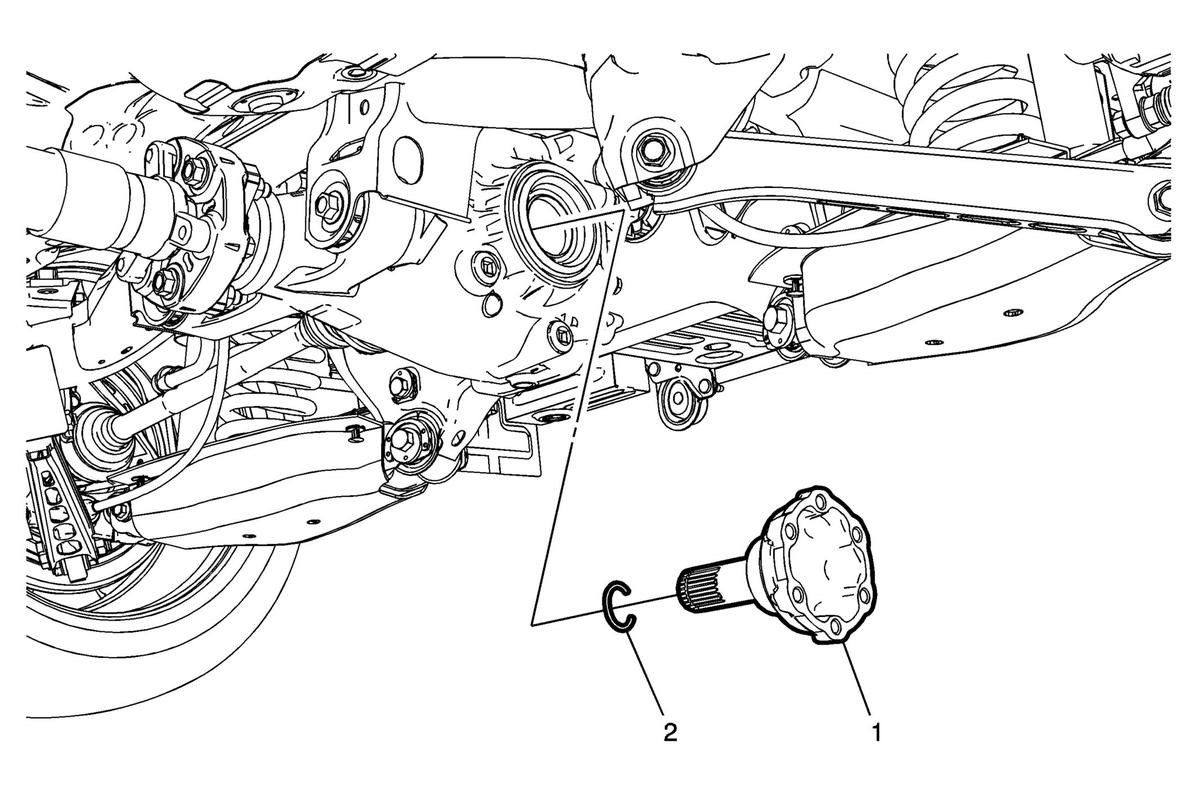

Fig 1: Rear Axle Shaft (195/218mm Axles)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle (ATS)Lifting and Jacking the Vehicle (ATS-V) Remove the rear wheel drive shaft. Refer to Rear Wheel Drive Shaft Replacement - Left Side (LCV, LF4)Rear Wheel Drive Shaft Replacement - Left Side (LTG, LGX) , Rear Wheel Drive Shaft Replacement - Right Side (LGX, LTG)Rear Wheel Drive Shaft Replacement - Right Side (LF4, LCV)
1	Rear Axle Shaft Procedure Using the J-2619-01 Slide Hammer and the EN-24420-C Crankshaft Balancer Puller, remove the rear axle shaft. Using the appropriate tool, install the rear axle shaft Special Tools J-2619-01 Slide Hammer EN-24420-C Crankshaft Balancer Puller For regional equivalent tool, refer to Special Tools .
2	Rear Axle Shaft Retaining Clip Procedure Remove and discard the retaining clip. Replace with NEW only.

Callout

Component Name

Preliminary Procedure

Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle (ATS)Lifting and Jacking the Vehicle (ATS-V)
Remove the rear wheel drive shaft. Refer to Rear Wheel Drive Shaft Replacement - Left Side (LCV, LF4)Rear Wheel Drive Shaft Replacement - Left Side (LTG, LGX) , Rear Wheel Drive Shaft Replacement - Right Side (LGX, LTG)Rear Wheel Drive Shaft Replacement - Right Side (LF4, LCV)

Rear Axle Shaft

Procedure

Using the J-2619-01 Slide Hammer and the EN-24420-C Crankshaft Balancer Puller, remove the rear axle shaft.
Using the appropriate tool, install the rear axle shaft

Special Tools

J-2619-01 Slide Hammer
EN-24420-C Crankshaft Balancer Puller

For regional equivalent tool, refer to Special Tools .

Rear Axle Shaft Retaining Clip
Procedure
Remove and discard the retaining clip. Replace with NEW only.
