Installation Procedure
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

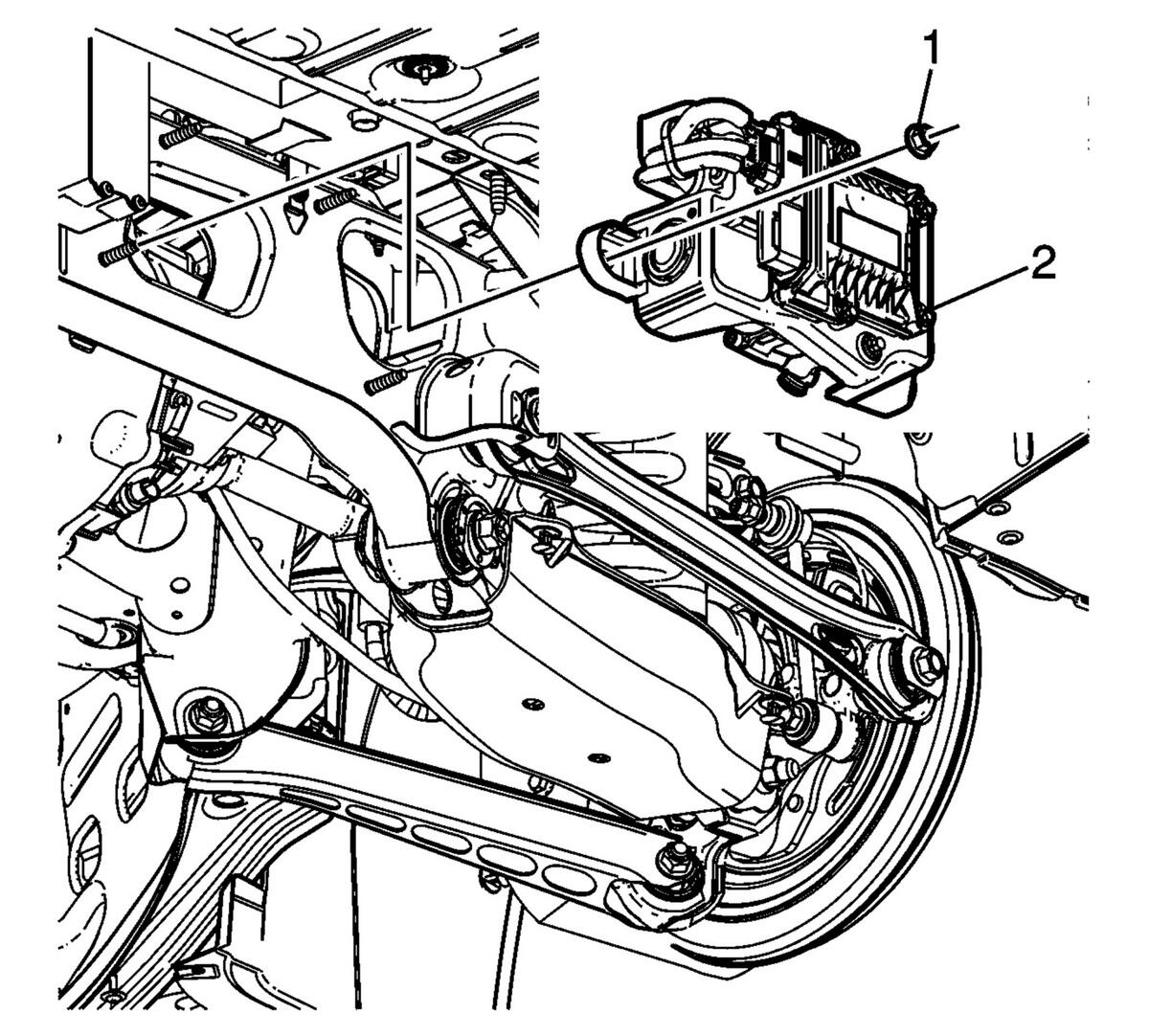

- Install the rear axle differential lock control actuator assembly (2) and nuts (1). Tighten the nuts (1) to 15 N.m (11 lb ft).
- Connect the hoses to the differential. Refer to Limited Slip Differential Clutch Pipe Connector Disconnection and Connection .
- Fill the differential clutch fluid. Refer to Rear Differential Hydraulic System Service Fill/Bleed .
- Remove the drain pan from under the vehicle.
- Lower the vehicle. Refer to Lifting and Jacking the Vehicle (ATS)Lifting and Jacking the Vehicle (ATS-V) .
