Installation Procedure

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

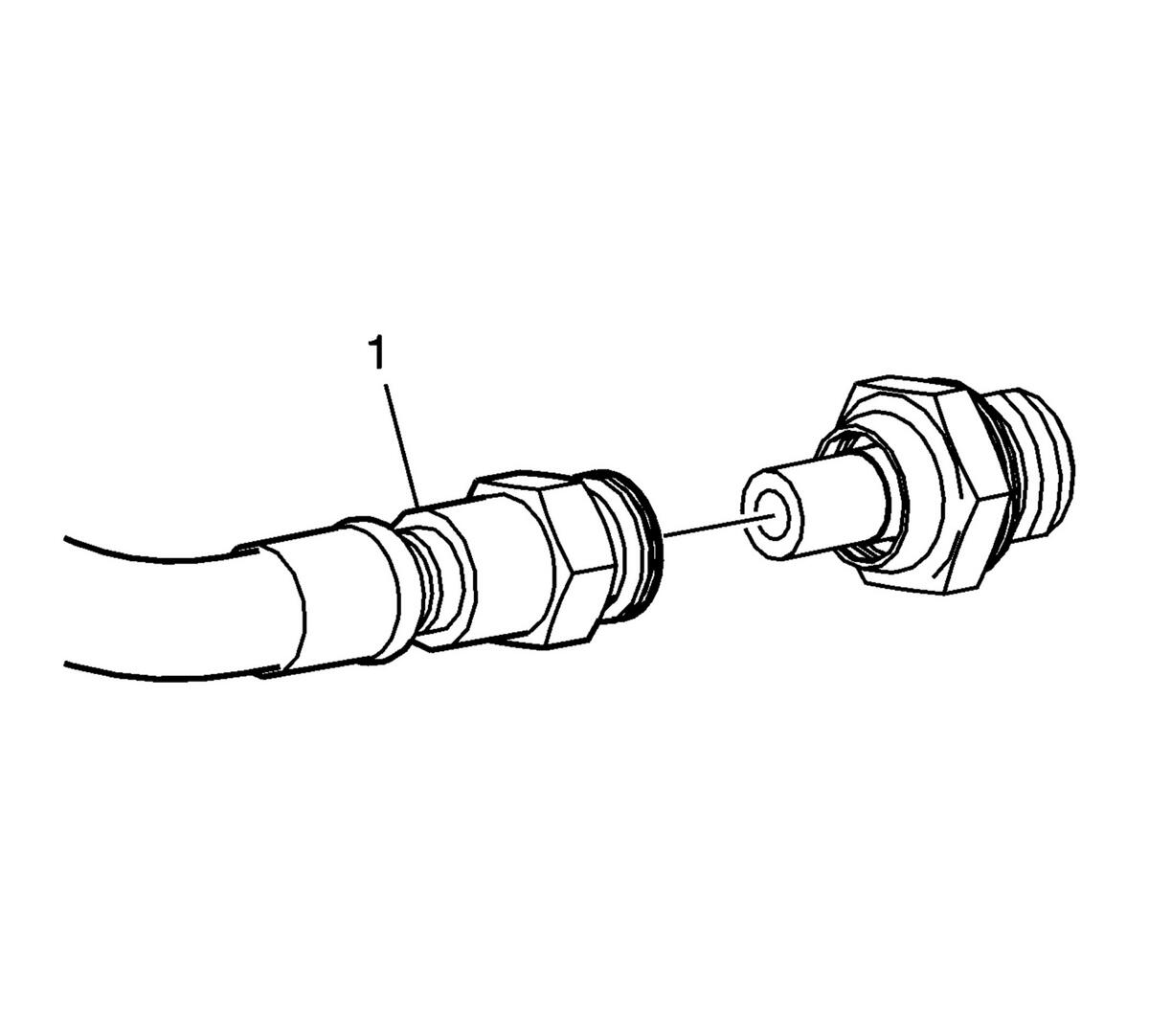

Fig 1: Pipe Fitting

Courtesy of GENERAL MOTORS COMPANY

IMPORTANT:

Inspect the pipe fitting and retaining clip for signs of wear or damage. Replace the components if necessary.

Install the pipe (1) by pressing the pipe onto the pipe fitting.

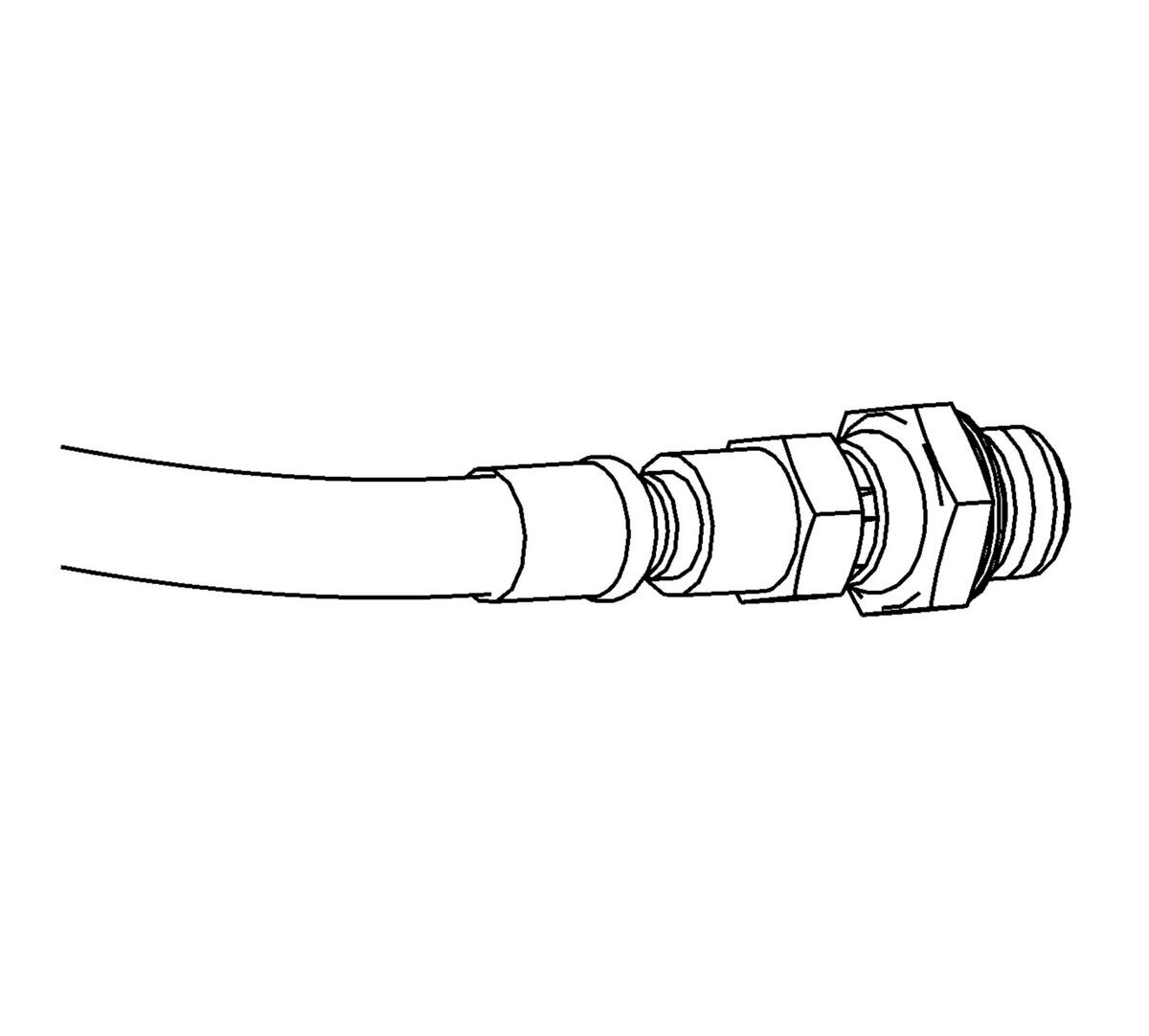

Fig 2: Assembled Pipe Fitting

Courtesy of GENERAL MOTORS COMPANY

A distinct snap should be heard or felt when assembling the pipe to the fitting.
To ensure the cooler line is properly installed, give the cooler pipe a gentle pull.
