Installation Procedure

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

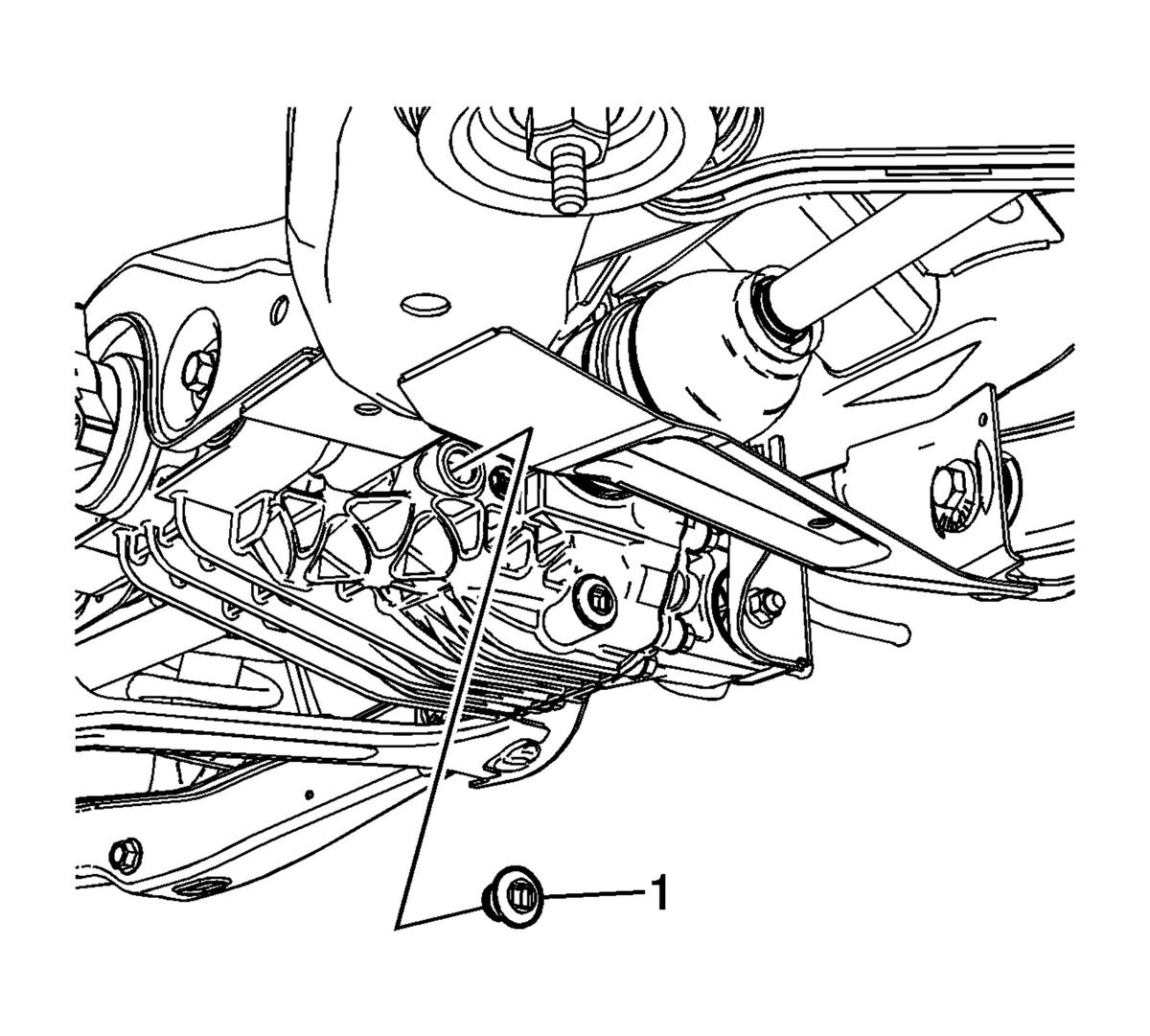

Fig 1: Drain Plug

Courtesy of GENERAL MOTORS COMPANY

CAUTION:

Refer to Fastener Caution .

Install the drain plug (1) and tighten to 33 N.m (24 lb ft).
Fill the rear differential to the proper level with the proper fluid. Refer to Rear Axle Lubricant Level Inspection , and Adhesives, Fluids, Lubricants, and Sealers .

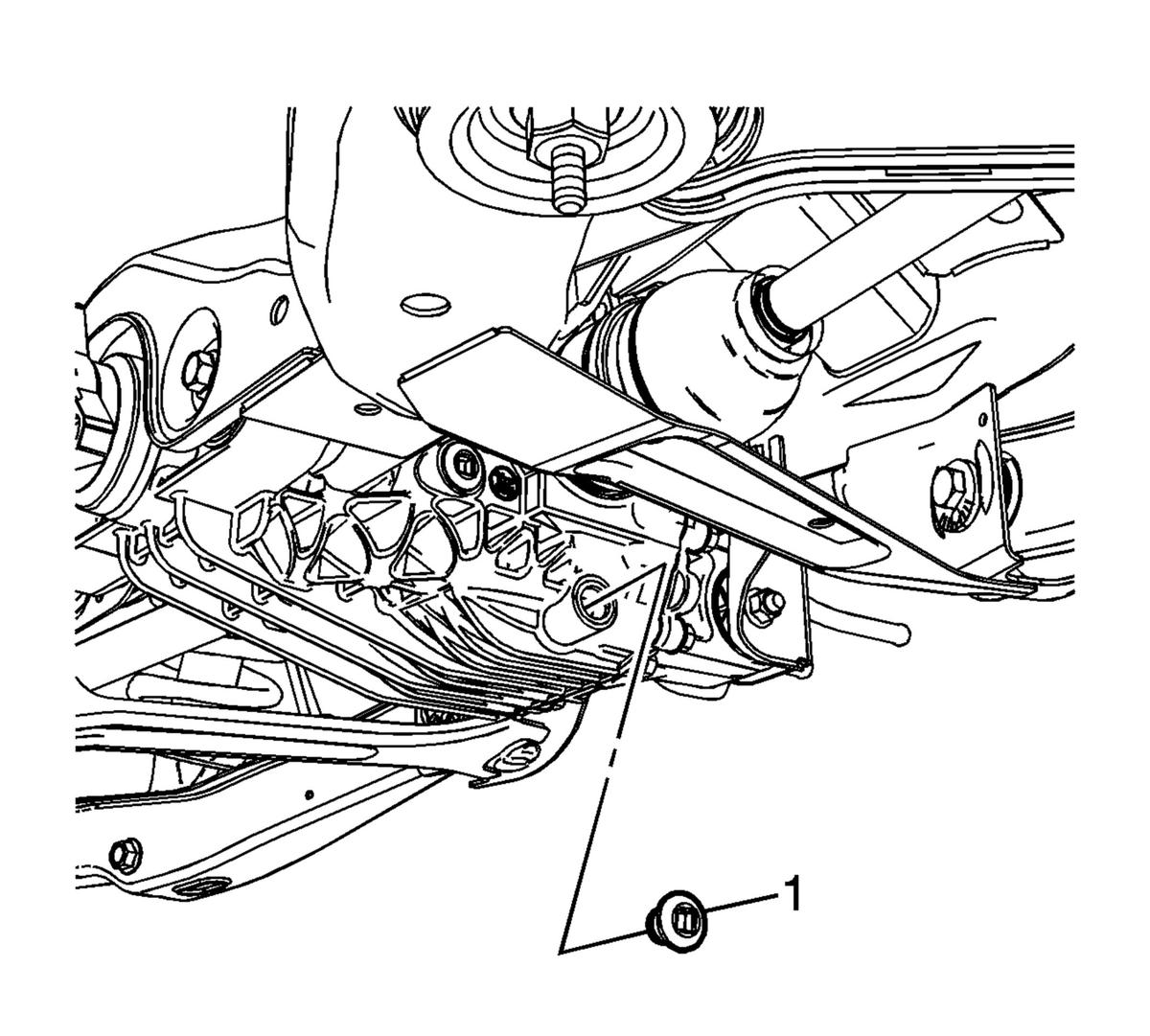

Fig 2: Differential Fill Plug

Courtesy of GENERAL MOTORS COMPANY

Install the rear differential fill plug (1) and tighten to 33 N.m (24 lb ft).
Remove the support and lower the vehicle.
