Differential Oil Cooler Outlet Hose Replacement (226mm eLSD)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

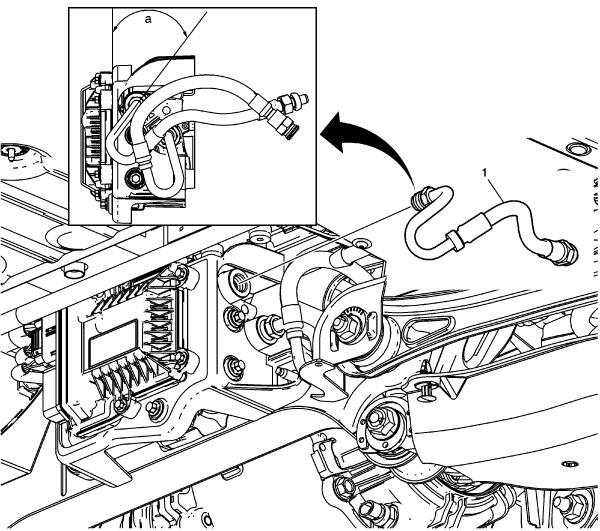

Fig 1: Differential Oil Cooler Outlet Hose (226mm eLSD)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle (ATS)Lifting and Jacking the Vehicle (ATS-V) . Install a drain pan under the vehicle.
1	Differential Oil Cooler Outlet Hose Assembly Procedure Remove the differential oil cooler outlet hose assembly. Refer to Limited Slip Differential Clutch Pipe Connector Disconnection and Connection . Install the NEW differential oil cooler outlet hose assembly. The hose must be installed at an angle of 37° (a) before tightening. Fill the differential clutch fluid. Refer to Rear Differential Hydraulic System Service Fill/Bleed . Tighten 28 N.m (21 lb ft)

Callout

Component Name

Preliminary Procedure

Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle (ATS)Lifting and Jacking the Vehicle (ATS-V) .
Install a drain pan under the vehicle.

Differential Oil Cooler Outlet Hose Assembly

Procedure

Remove the differential oil cooler outlet hose assembly. Refer to Limited Slip Differential Clutch Pipe Connector Disconnection and Connection .
Install the NEW differential oil cooler outlet hose assembly. The hose must be installed at an angle of 37° (a) before tightening.
Fill the differential clutch fluid. Refer to Rear Differential Hydraulic System Service Fill/Bleed .

Tighten
28 N.m (21 lb ft)
