Differential Drive Pinion Gear Seal Replacement (195mm Axle)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

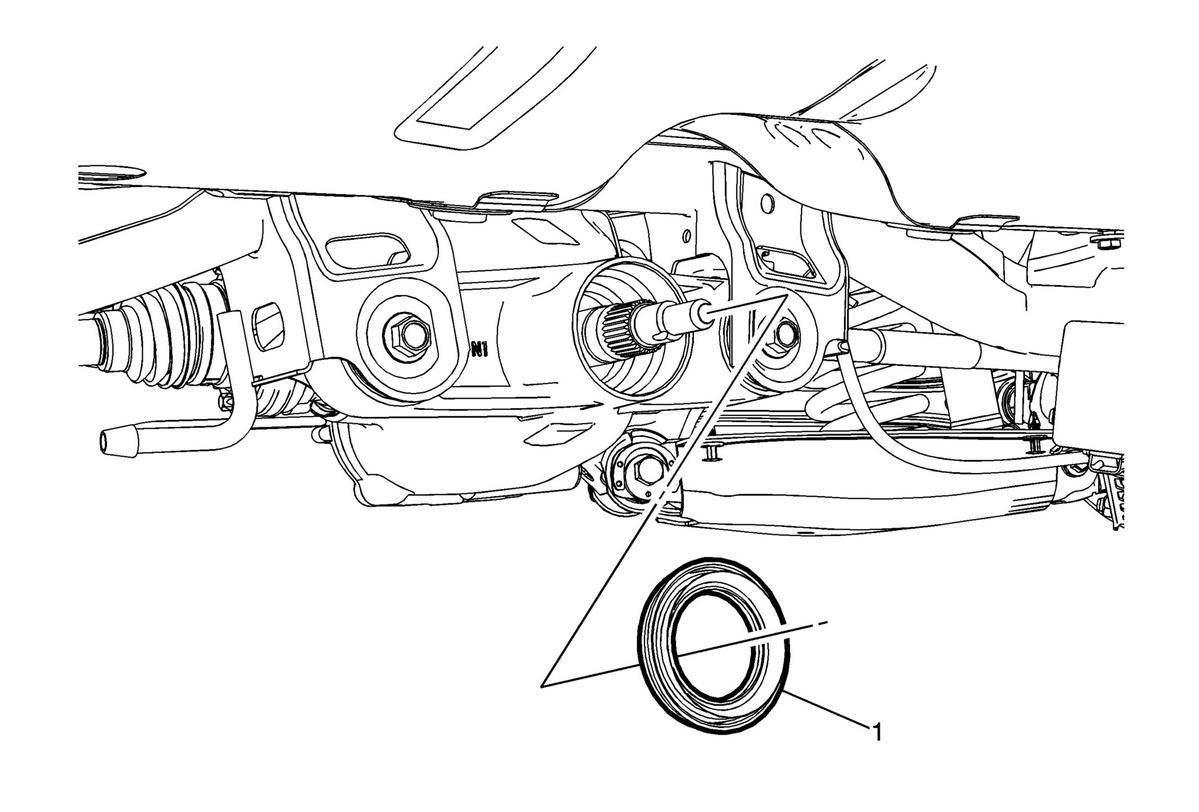

Fig 1: Differential Drive Pinion Gear Seal (195mm Axle)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle (ATS)Lifting and Jacking the Vehicle (ATS-V) Remove the rear wheel drive shaft flange. Refer to Rear Wheel Drive Shaft Flange Replacement (195mm Axle) .
1	Differential Drive Pinion Gear Seal Procedure Using the appropriate tool, remove the differential drive pinion gear seal. Using the DT-49861 installer, install the differential drive pinion gear seal. Special Tools DT-49861 Seal Installer For regional equivalent tools, refer to Special Tools .

Callout

Component Name

Preliminary Procedure

Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle (ATS)Lifting and Jacking the Vehicle (ATS-V)
Remove the rear wheel drive shaft flange. Refer to Rear Wheel Drive Shaft Flange Replacement (195mm Axle) .

Differential Drive Pinion Gear Seal

Procedure

Using the appropriate tool, remove the differential drive pinion gear seal.
Using the DT-49861 installer, install the differential drive pinion gear seal.

Special Tools
DT-49861 Seal Installer
For regional equivalent tools, refer to Special Tools .
