Differential Carrier Cover and Seal Replacement (195mm Axle)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

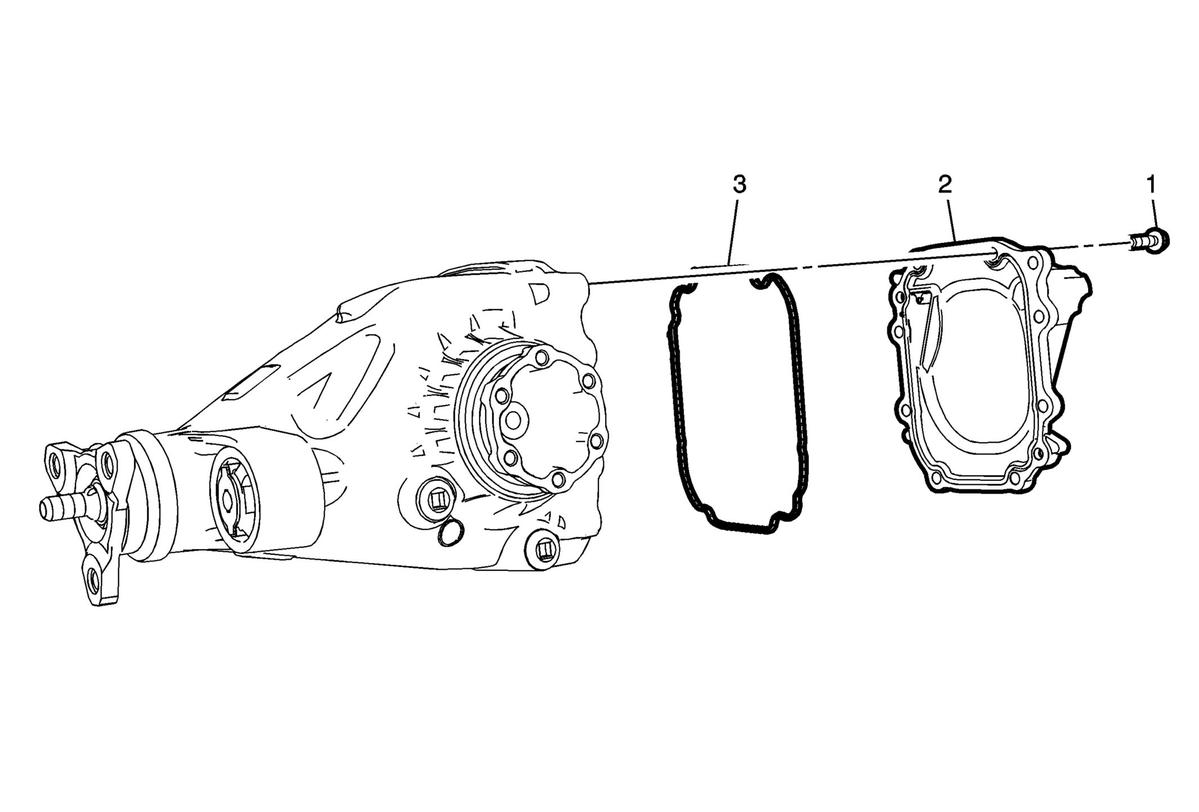

Fig 1: Differential Carrier Cover & Seal (195mm Axle)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle (ATS)Lifting and Jacking the Vehicle (ATS-V) . Remove the differential carrier assembly. Refer to Differential Carrier Assembly Replacement (LFX, LTG) Differential Carrier Assembly Replacement (LF4) Differential Carrier Assembly Replacement (LCV) .
1	Differential Carrier Cover Bolt (Qty: 9) CAUTION: Refer to Fastener Caution . Tighten 52 N.m (38 lb ft)
2	Differential Carrier Cover
3	Differential Carrier Cover Seal
