Differential Carrier Bushing Replacement - Rear

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

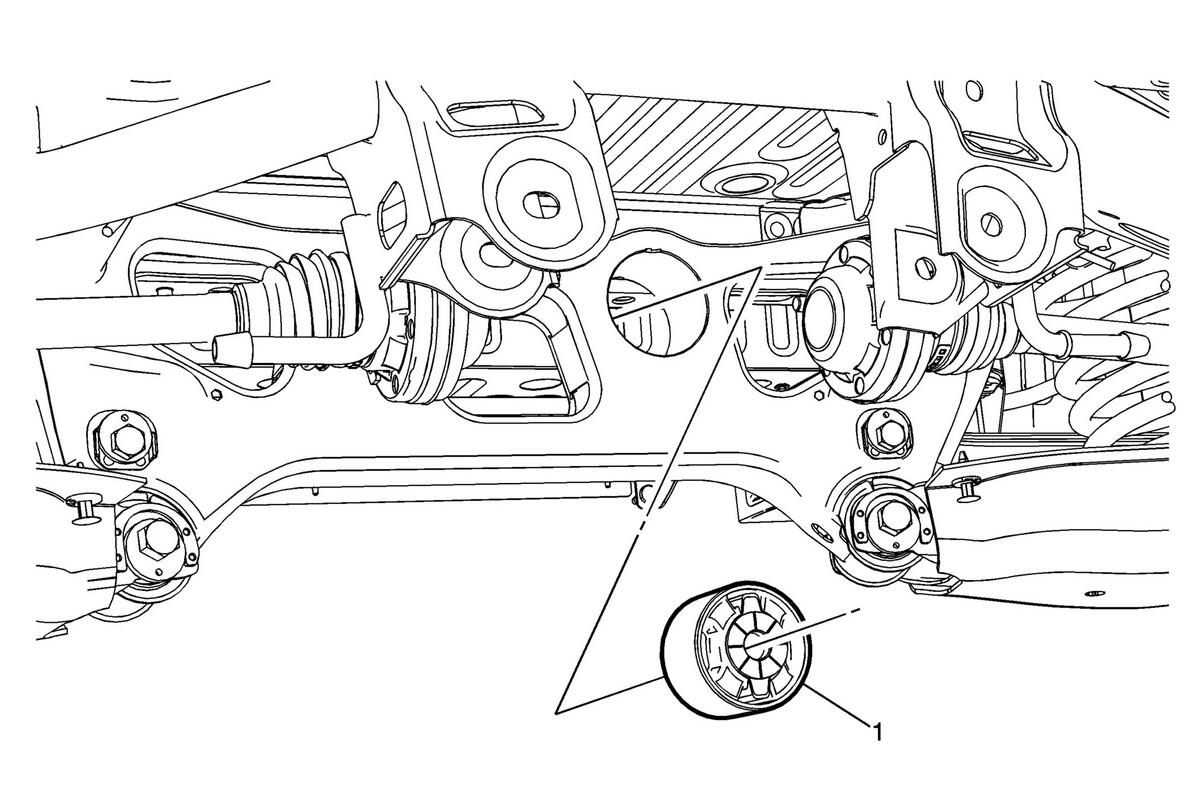

Fig 1: Differential Carrier Bushing - Rear
GM2833333Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedure

  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle (ATS)Lifting and Jacking the Vehicle (ATS-V)
  2. Removal the differential carrier assembly. Refer to Differential Carrier Assembly Replacement (LFX, LTG) Differential Carrier Assembly Replacement (LF4) Differential Carrier Assembly Replacement (LCV)
1 Differential Housing Support Bushing Rear

Procedure

  1. Mark the orientation of the bushing in the rear cradle assembly on both sides of the cradle and on the new bushing.
  2. Measure the depth of the installed bushing prior to removal.
  3. Mark the new bushing keeping the same orientation.
  4. Using the DT-50806-5  installer and remover and DT-50806-3  installer and remover, remove and install the support bushing to the same orientation and depth.

Special Tools
DT-50806  Bushing Replacer
For regional equivalent tools, refer to Special Tools .
