Controls and Instrument Panel Lamps

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

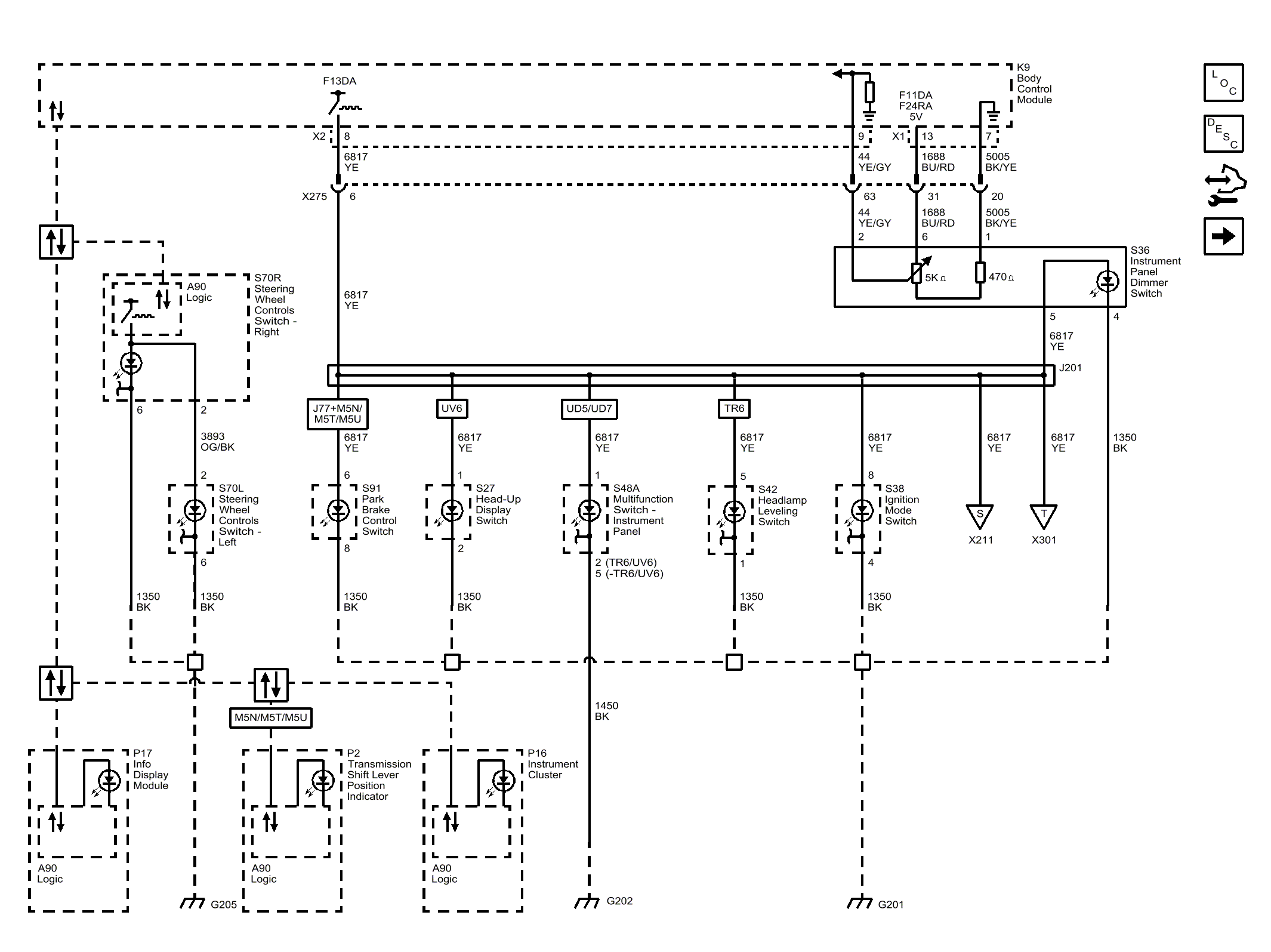

Fig 1: Controls and Instrument Panel Lamps
GM4491121Courtesy of GENERAL MOTORS COMPANY
