Turn Signal Lamps (Front and Repeater)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

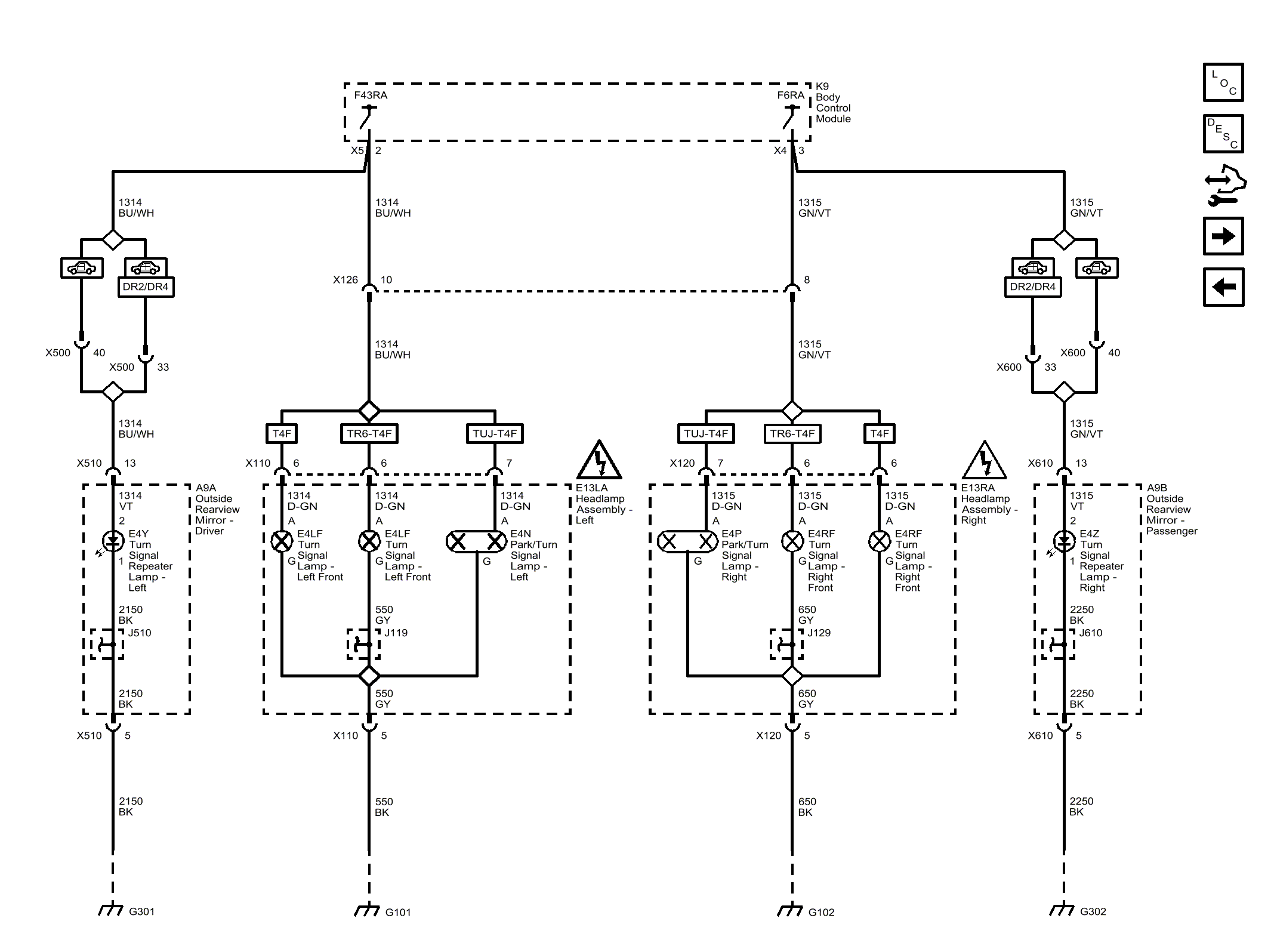

Fig 1: Turn Signal Lamps (Front and Repeater)
GM4491093Courtesy of GENERAL MOTORS COMPANY
