Park/Position Lamps (without T4F)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

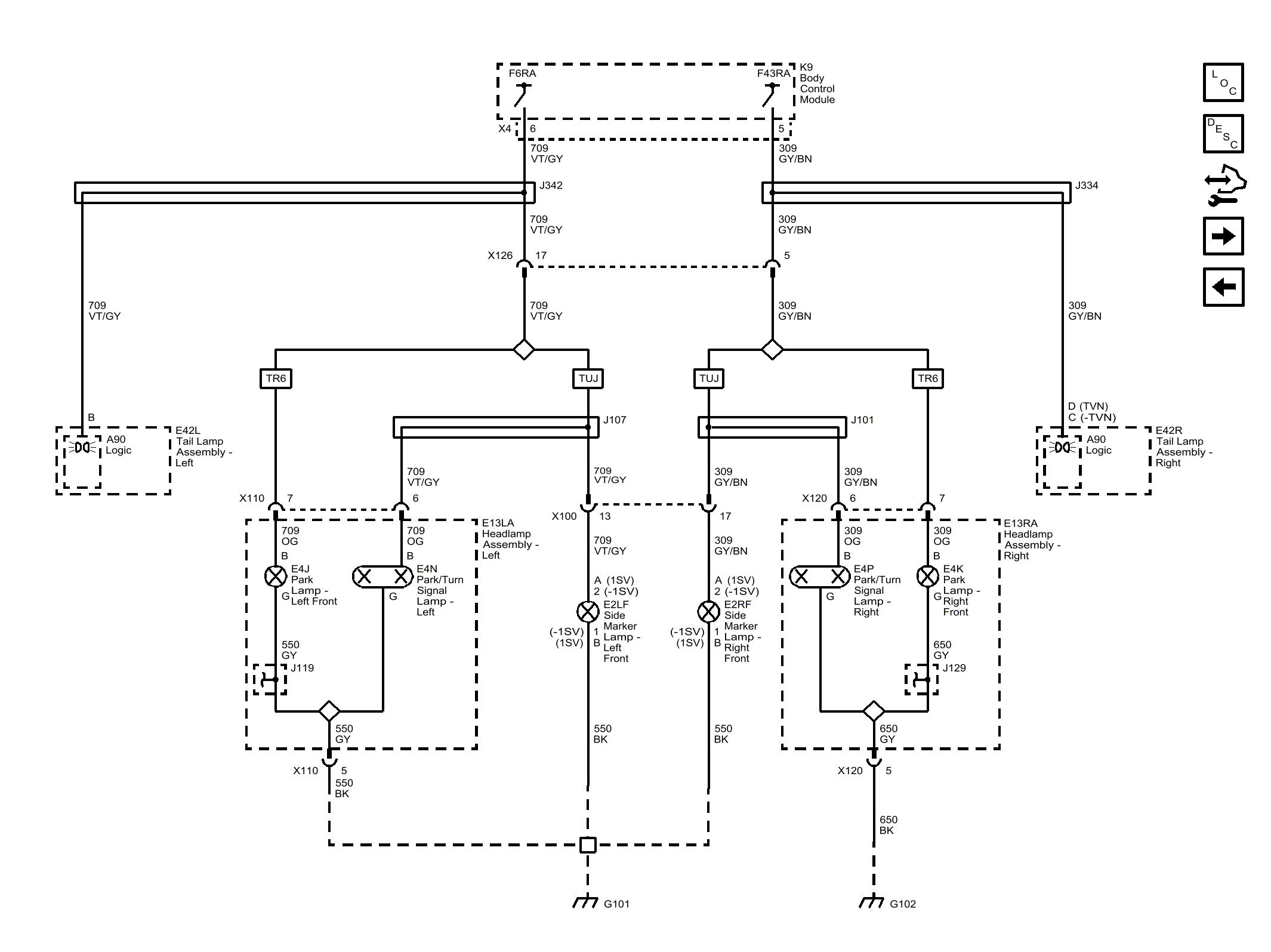

Fig 1: Park/Position Lamps (without T4F)
GM4491090Courtesy of GENERAL MOTORS COMPANY
