Front Side Markers, Brake and Tail Lamp Assembly Lights (-TVN)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

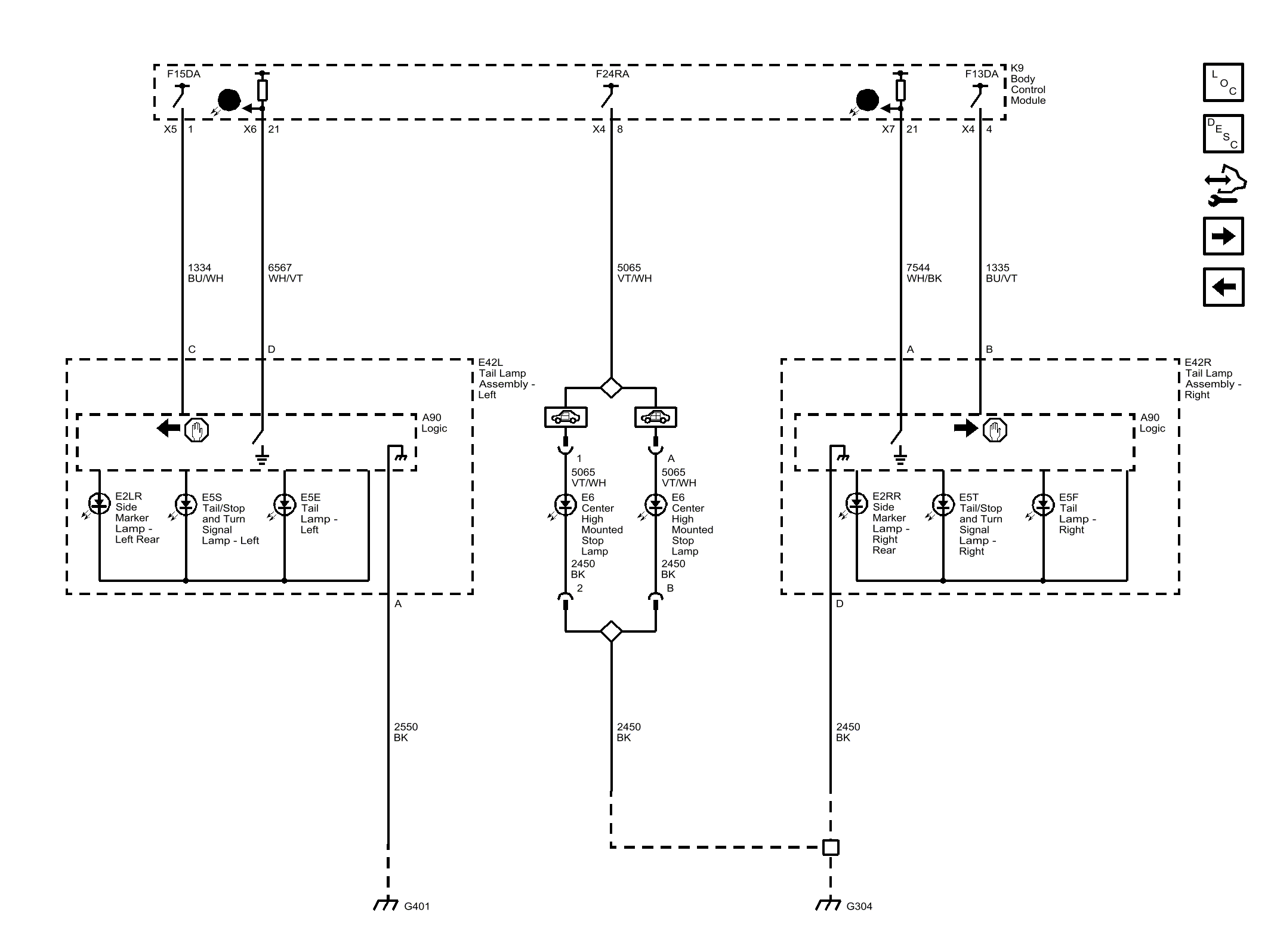

Fig 1: Front Side Markers, Brake and Tail Lamp Assembly Lights (-TVN)
GM4491095Courtesy of GENERAL MOTORS COMPANY
