Approach Lighting (Sedan+DR2/DR4/HD7)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

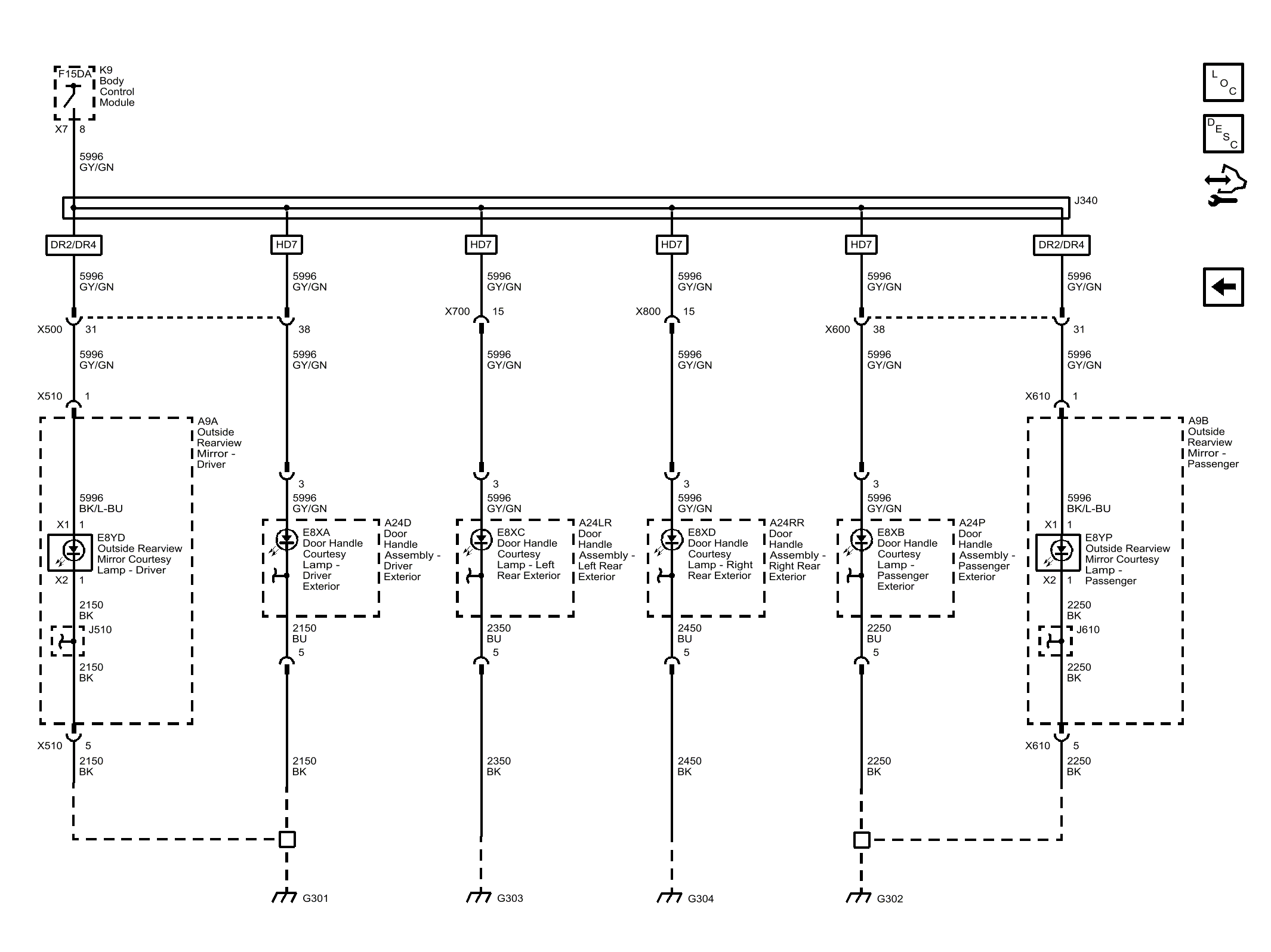

Fig 1: Approach Lighting (Sedan+DR2/DR4/HD7)
GM4491099Courtesy of GENERAL MOTORS COMPANY
