Section 211 (Suspension Control System - Suspension Damping)
>>
Schematic Wiring Diagrams
>>
Electronic Suspension Control Wiring Schematics
>>
Electronic Suspension Control (F55)
Electronic Suspension Control (F55)
WARNING:
This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

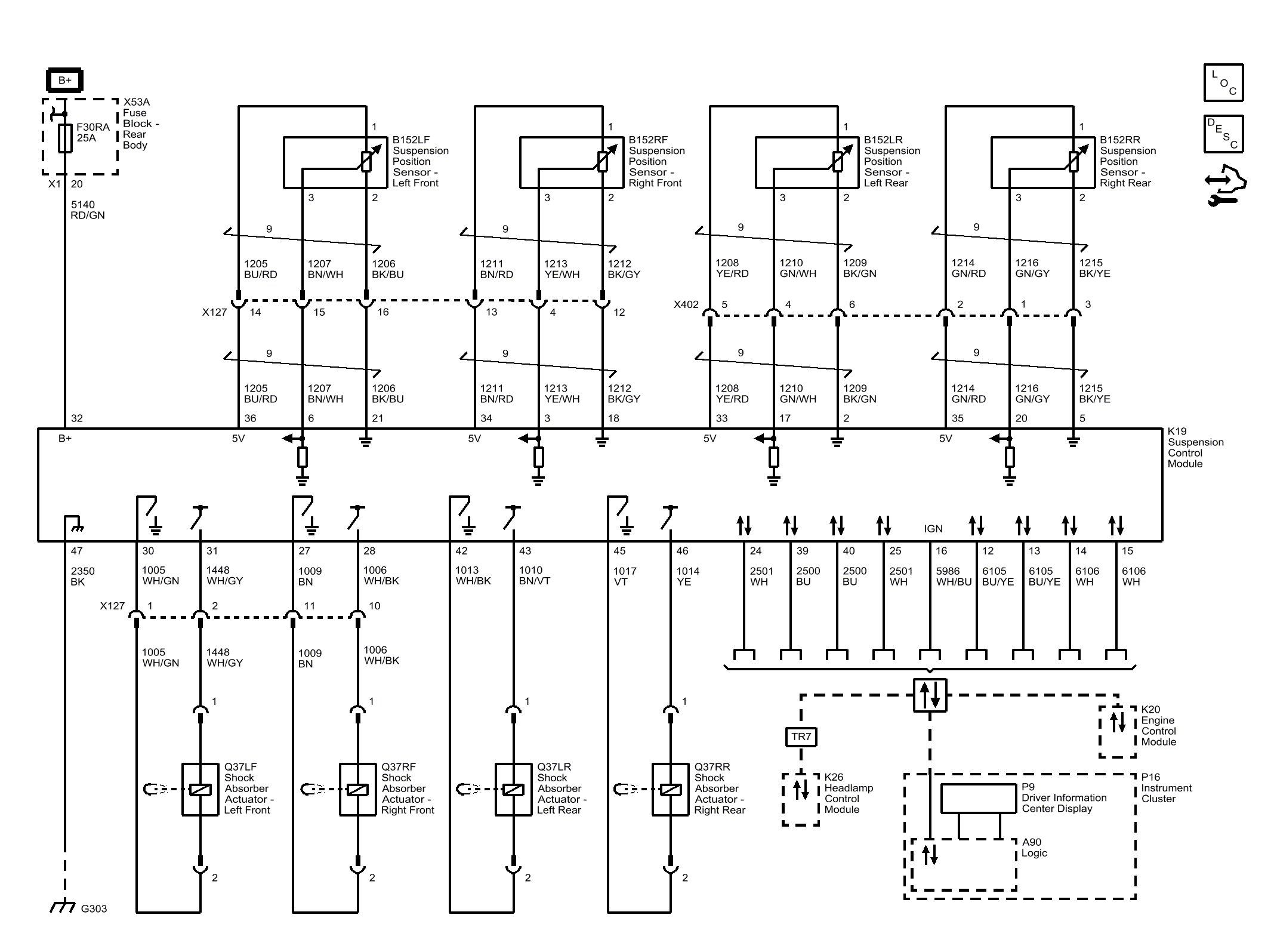

Fig 1: Electronic Suspension Control (F55)
Courtesy of GENERAL MOTORS COMPANY
