Ride Control Switch Replacement
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

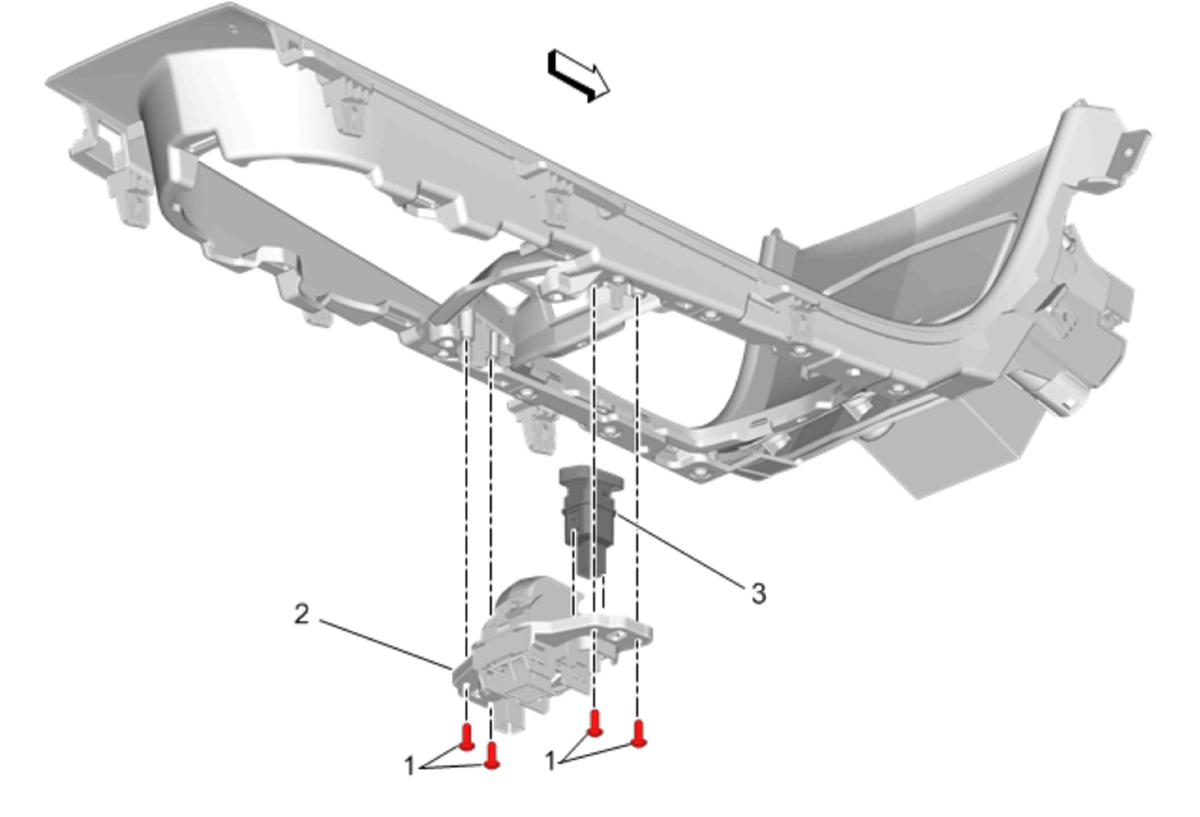

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove Front Floor Console Trim Plate. Refer to Front Floor Console Trim Plate Replacement . |
|
| 1 | Front Floor Console Trim Plate Bolt (Qty: 4)
CAUTION:
Refer to Fastener Caution . Tighten .75 N.m (7 lb in) |
| 2 | Front Floor Console Bracket |
| 3 | Ride Control Switch Procedure
|
